CARPO DB pole lUminaire: LED lighting for platforms, Tracks and outdoor areas
Sophisticated lighting plays an important role in railway infrastructure – not only for safety, but also for orientation and a comfortable surroundings. Pole luminaires deliver even, glare-free lighting across platforms, parking lots and walkways. Whether installed at major transport nodes or outlying stops, they provide reliable orientation, strengthen the sense of security among travelers, raise the quality of the surroundings, and align with sustainable operation strategies. At the same time, they are required to meet the highest standards of light distribution, durability, and serviceability – key to reliable day-to-day railway operations.
NORKA meets these exacting demands with the specially developed CARPO DB pole luminaire. It was designed to meet the high demands of rail and public transport. Thanks to it's long-life LED technology, it offers a sustainable lighting solution for platforms, parking lots and other traffic areas. With an impact resistance class of IK 08 CARPO DB stands for high resilience – a key factor for use in outdoor areas and transport infrastructure. The light distribution curve specially tailored to the requirements of Deutsche Bahn (German Railway) enables energy-efficient platform illumination with minimal light pollution.
The CARPO DB also actively contributes to reducing the carbon footprint. The modular design allows the targeted replacement of individual components – without having to replace the entire luminaire. This extends the service life, reduces maintenance costs and saves resources. Choose future-proof LED pole luminaires from NORKA for safe, sustainable, and high-performance outdoor lighting.
CARPO DB – LED pole luminaires
Energy efficiency through LED technology
The CARPO DB is more than just a luminaire. It is part of an overall concept in modern mobility. Its high-quality die-cast aluminum housing and solid construction ensure consistently high performance – even under challenging conditions.
As an LED luminaire for the traffic sector, it combines state-of-the-art technology with sustainable design. The pole luminaire is robust and durable. This makes it the ideal choice for sustainable outdoor lighting. Thanks to it's high-quality construction and modern design, it is suitable as a pole luminaire for public areas.
Whether new construction or modernization – the CARPO DB can be seamlessly integrated into existing infrastructure and supports future-oriented lighting concepts in the transport sector.

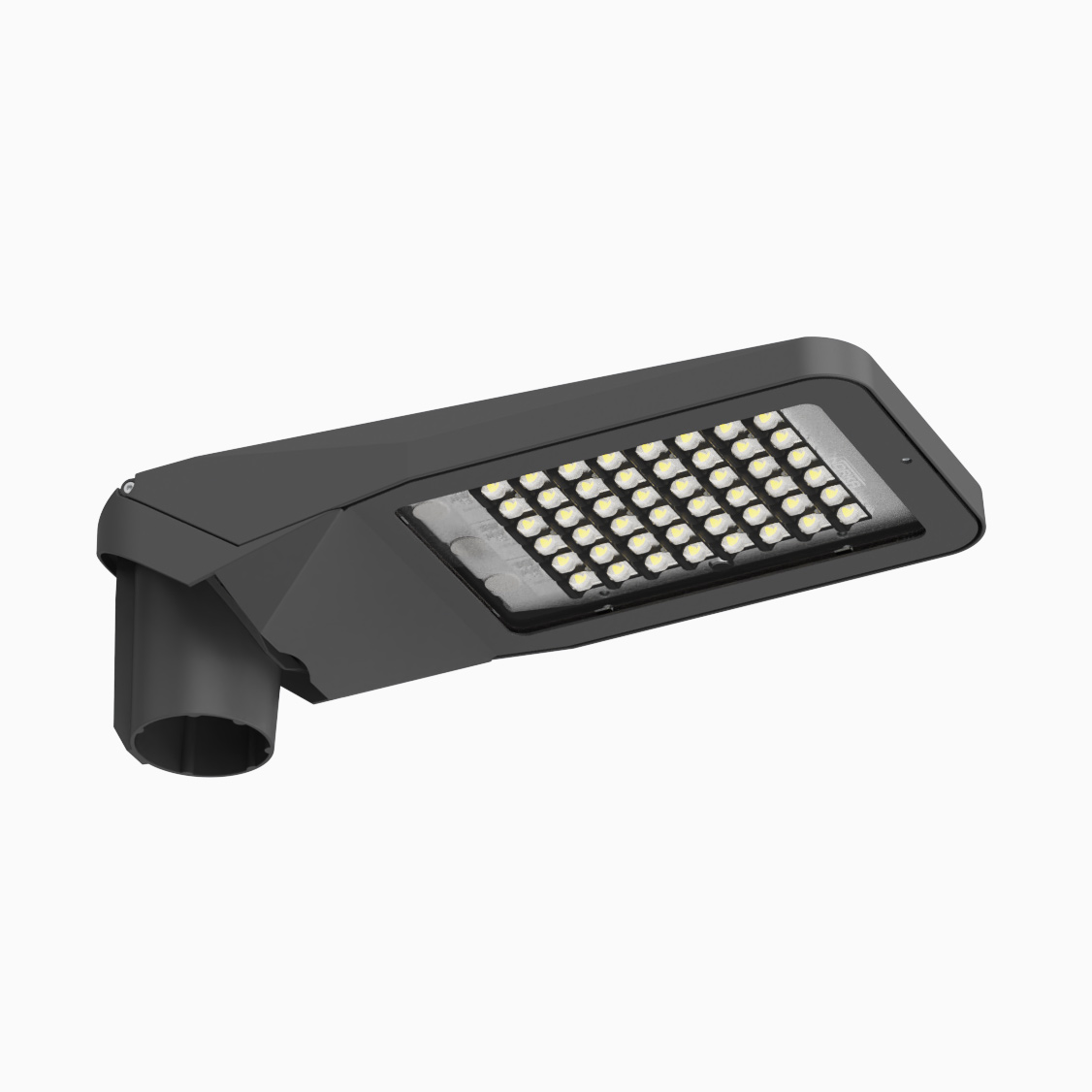

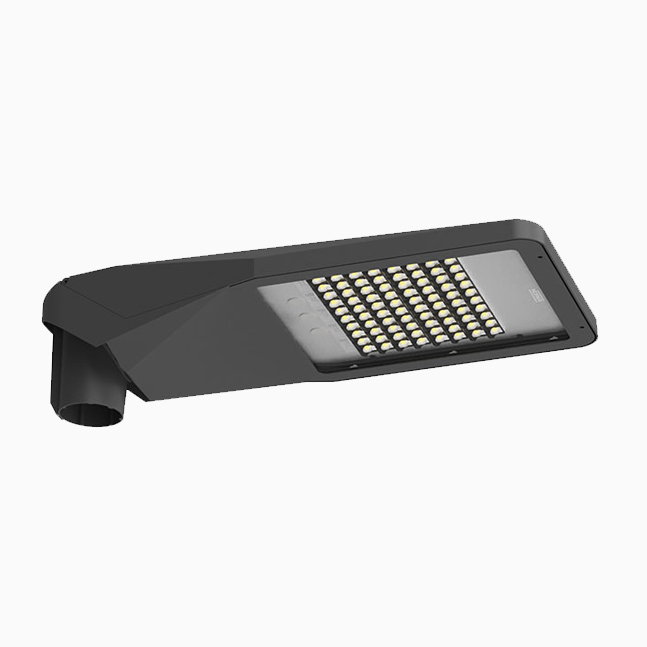

m1: 2920 lm @23 W
m2: 4850 lm @36 W

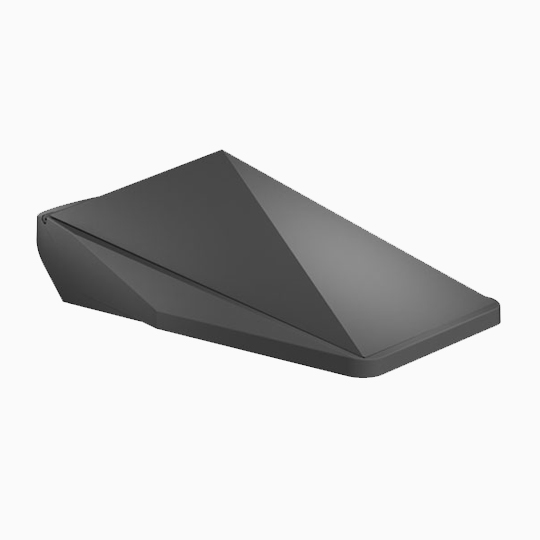

Optional: hood to keep of pigeons and protect against snow and ice deposits

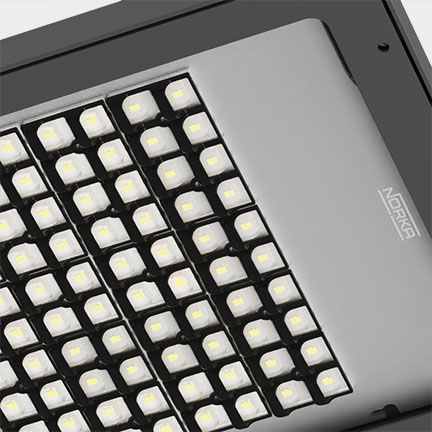

Detail view of CARPO DB
Product - and performance features
Modern technology
The integrated DALI driver enables intelligent lighting control, while the 10 kV transient filter protects your luminaire from voltage peaks.
easy eXchange
The LEDs and the driver are very easy to replace at the end of it's service life using easy eXchange replacement kits.
Robust & durable
With an impact resistance of IK 08, the luminaire can withstand even heavy impacts.
Optimal LVK
The clear safety glass cover (IK 08 ESG) with internal lens optics guarantees equally and efficient illumination.
Easy installation
The luminaire works with 230 V AC and can be easily integrated into existing infrastructures.

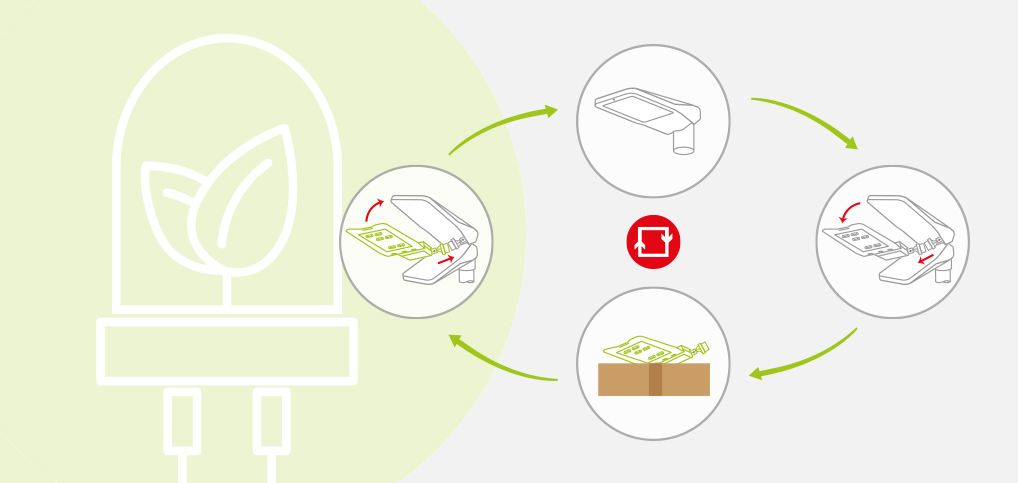

Retain the housing, replace the control gear and LEDs
Thanks to our easily replaceable driver and LEDs, your lighting remains durable and efficient. easy eXchange makes replacement simple. It extends the service life of the luminaires. This saves time, costs and important resources.
At the end of their service life, LEDs and driver can be easily replaced with easy eXchange replacement kits. This is possible without having to replace the entire luminaire.The robust housing is retained.
Sustainable lighting with easy eXchange

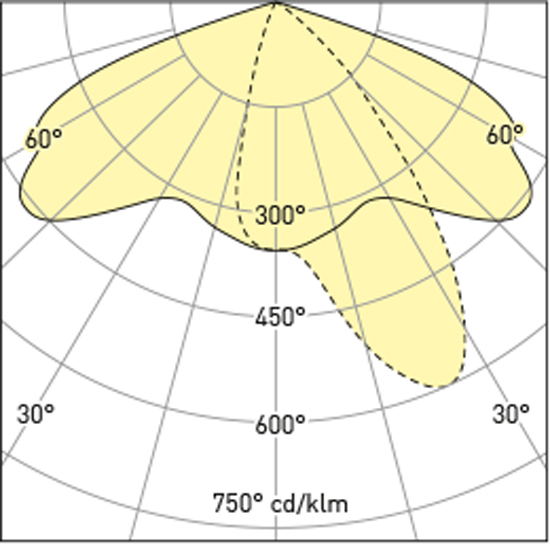

CARPO DB - optimized light distribution for platforms
The light distribution curve (LDC) is a key tool in lighting technology. It describes the light distribution of a light source and plays a decisive role in targeted and energy-efficient lighting design. In this context, the accumulated utility also plays an important role – it evaluates the suitability of a luminaire for illuminating a defined area in terms of efficiency and scattered light.
When it comes to selecting the right products, project planners and decision-makers should pay attention to aspects such as energy efficiency, weather resistance, maintenance requirements and the integration of the luminaires into their surroundings. A well-thought-out selection ensures functional and aesthetic lighting that delivers high efficiency and low operating costs in the long term.

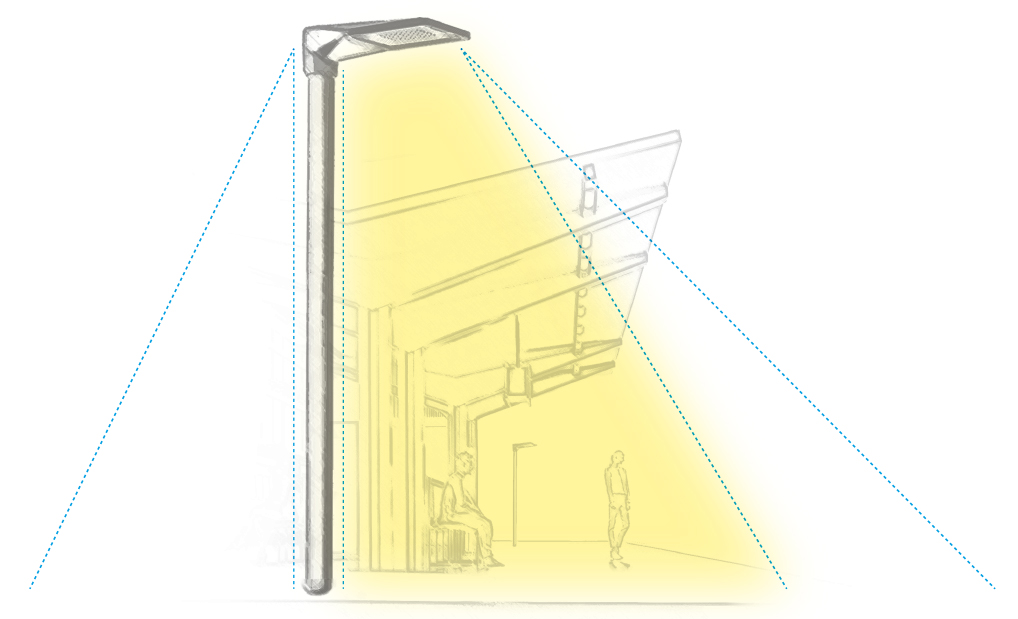

The light distribution of CARPO DB is optimized for use on uncovered platforms. Among other things, the targeted light control prevents the train driver from being dazzled. At the same time, it helps to reduce the risk of passers by accidentally stepping onto the tracks.
Thanks to its full cut-off design and horizontal light emitting surface, CARPO DB prevents light spill to the sky and achieves maximum photometric efficiency. Thanks to its optimized accumulated luminous efficacy, which can be described as a major contribution to environmental and insect protection.
Interaction between the light distribution curve and accumulated utilization in lighting design
An optimum lighting solution is the result of the interplay between the light distribution curve and the accumulated utility. Simply looking at light distribution is not enough – only an analysis of the amount of light effectively used enables sustainable and energy-efficient lighting design.
Efficiency starts with planning
Light scattering, light pollution, glare or unnecessarily high energy consumption can be avoided if the right parameters are taken into account at the planning stage. This is why NORKA actively supports customers in lighting design – with technical expertise, many years of experience and a clear goal: customized lighting solutions that are used exactly where they are needed.
Are you interested in our CARPO DB pole luminaire and would like advice? Then please do not hesitate to contact us!
