9152713466-H1

CENTAURUS 270 VHT

25130 lm, 159 W, ESG, clear, medium beam, prepared for pendulum mounting

9152713466-H1
XARA ®optional
additional color temperatures
medium beam
  • led
  • EL_optional
  • IP65
  • ce
  • enec
  • vde
  • protection_class_I
  • lucon
  • ballwurfsicher_optional
  • rauer_betrieb
  • IK09_ESG

Floodlight with LED array. Useable in extremely high industrial halls, manufacturing areas, sports halls, swimming pools (see options), as well as mounting on industrial cranes or large pieces of equipment. Useable in production facilities and suppliers in the food and beverage industry. Optional outdoor version. Version CENTAURUS VHT up to +80 °C. Robust luminaire housing made of corrosion-resistant, colour finish similar to RAL 9006. Useable according to protection rating IP 65. With age-resistant, form-retaining gasket made of silicone/synthetic rubber. Pressure balancing system with climate membrane against the formation of condensate in the housing. Cover screen made of PC clear (fracture proof), clear or safety glass cover screen. Internal aluminium reflector with adapter for a prism screen for circular deglare (DDP). Narrow beam version with individual reflectors (MIRO-SILVER®). Luminaire ready for mounting and installation. LED-driver, thermally separated. Supply voltage 230-240 V AC/DC. Single mounting. Ceiling installation using swivel bracket (for ball impact resistant version see options) or preparation for suspension system including four eyebolts. Cord and ceiling installation are to be provided on site. Optional anti-vibration damper (not chlorine-resistant, only suspended installation) for cranes.

Version
270 VHT
Lamp
LED array
Number of lamps
4-lamp
Luminous flux lamp
25130 lm
LOR
92.9 %
Luminous flux luminaire
23346 lm
max. System power
159 W
Luminaire efficacy
146.8 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Nominal current
580 mA
Lamp service life
L80 B10 > 60,000 h at +80°C
Ambient temperature
-35°C to +80°C
Type of gear
LED operating device current-controlled,
DALI (additional 2 x 1.5 mm² control line), 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
optional
Transient protection
10 kV
Max. number of luminaires Circuit breaker B16
3
Max. Number of luminaires Circuit breaker C16
4
Housing material
aluminium
Colour housing
Aluminium
Material of the cover
ESG, clear
Light distribution
medium beam
Adjustability
Not adjustable
UGR Value (4H8H)*
25.1
Protection class
I
IP-rating
IP65
Impact strength
IK09
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
wire suspension, Surface mounting, ceiling mounting, single mounting
Type of attachment
prepared for pendulum mounting
Replaceability of control gear
control gear replaceable by professional
Energy efficiency class of the light source
F
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
530 mm
Width
530 mm
Height
125 mm
Mounting dimension a
388 mm
Max. weight
18,0 kg

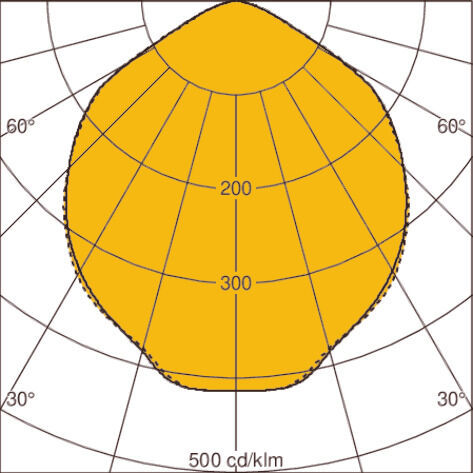

Light distribution curveLOR: 92 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:915222
  • article-number:915010
  • article-number:915016
  • article-number:915036
  • article-number:On request
