6624902424-SG1-HT

EIDELSTEDT DB m1200 HT

8080 lm, 55 W, reflector tube, PMMA Transopal® (impact strengthened), narrow beam

6624902424-SG1-HT
easy eXchange LED
narrow beam
  • led
  • EL
  • IP65
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • db_button
  • IK04_PMMA

Ceiling and wall surface-mountable polymer luminaire with LED lamps, single or twin-lamp. Useable in areas with increased risk of direct and indirect contact, e.g. work platforms, stairways, technical rooms or washing bays (with accessories). Luminaire housing made of weather-proof, fibreglass-reinforced polymer. For indoor and outdoor areas according to protection rating IP65. Thermally separated lamp chamber and driver chamber. Short sealing system and consisting of age-resistant, form-retaining silicone/synthetic rubber. Optimum colour rendering of red tones by special LED modules with an increased R9 value (> 77). Reflector tube made of PMMA Transopal® (impact strengthened). Available with reflector tube that can be swievelled in 10° steps with internal aluminium reflector (MIRO-SILVER®). Luminaire ready for installation and connection. Two M20 cable entries on face side. DB (Deutsche Bahn) version: Built-in driver with secondary safety extra low voltage according to DIN VDE 0100-410 (SELV). Optimised with additional inrush current limiter (ESSB II). 4 kV transient filter. Single or row mounting. Ceiling fixing using two stainless steel mounting clips, variable mounting distance.
NOTE DB (Deutsche Bahn) version:
Listed: DB InfraGO Fahrweg – Group 2.

Version
m1200 HT
Lamp
LED
Number of lamps
2-lamp
Luminous flux lamp
8080 lm
LOR
90 %
Luminous flux luminaire
7272 lm
max. System power
55 W
Luminaire efficacy
132.21 lm/W
Colour temperature
White, 940/4000 K, Ra > 90
R9 red saturated > 46
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 / B10 > 50,000 h at +60°C
Ambient temperature
-25°C to +60°C
Type of gear
Electronic transformer,
No dim function, 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
true
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Inrush Current Limiter
Yes
Max. number of luminaires Circuit breaker B16
35
Max. Number of luminaires Circuit breaker C16
60
Through-wiring
4 x 2.5 mm²
Housing material
polymer
Colour housing
White
Cover
reflector tube
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
narrow beam
Adjustability
Swivelling
UGR Value (4H8H)*
17
Protection class
II
IP-rating
IP65
Impact strength
IK04
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
Surface mounting, ceiling mounting, wall mounting, suspension system
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
Reflector tube replaceable by professional
Energy efficiency class of the light source
D
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.

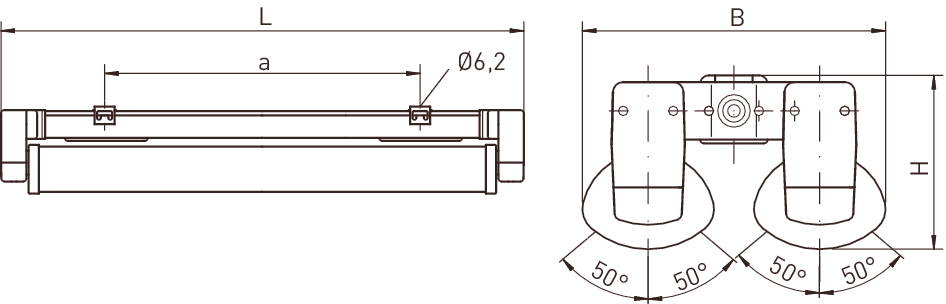

Dimensional Drawing
Length
1251 mm ± 2 mm
Width
242 mm
Height
140 mm
Mounting dimension a
920 mm ± 80 mm
Max. weight
4,3 kg

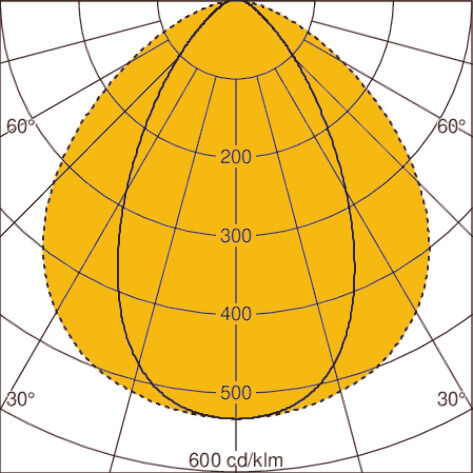

Light distribution curveLOR: 90 %
