5452900423-SG1

FULDA LED DB m600

2020 lm, 16 W, PMMA Transopal® (impact strengthened), Asymmetric beam with indirect downlighting

5452900423-SG1
Asymmetric beam with indirect downlighting
  • led
  • EL
  • IP65
  • IP66
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • db_button
  • IK08_PMMA

Polymer luminaire for ceiling and wall mounting with LED lamps. Useable in work pits used for maintenance and repair work. Suitable for production facilities and suppliers for the food and beverage industry, work pits, underpasses, underground and suburban railway stations and passages. Acid, alkaline and fuel-resistant luminaire housing made of fibreglass-reinforced polymer, similar to RAL 9010. Useable for indoor and outdoor areas according to protection rating IP 66. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber. Lamp diffuser made of PMMA Transopal® (impact strengthened) with inner aluminium reflector (MIRO-SILVER®). Optimum colour rendering of red tones by special LED modules with an increased R9 value (> 77). Luminaire ready for mounting and installation. Two cable glands on face side M20. DB (Deutsche Bahn) version: Built-in driver with secondary safety extra low voltage according to DIN VDE 0100-410 (SELV). Optimised with additional inrush current limiter (ESSB II). 4 kV transient filter. Single or row mounting. Ceiling, wall or corner fixing using two stainless steel mounting plates.

NOTE DB (Deutsche Bahn) VERSION:
Listed: DB InfraGO Fahrweg – Group 2.

Version
m600
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
2020 lm
LOR
70.9 %
Luminous flux luminaire
1432 lm
max. System power
16 W
Luminaire efficacy
89.5 lm/W
Colour temperature
White, 940/4000 K, Ra > 90
R9 red saturated > 46
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +45°C
Ambient temperature
-25°C to +45°C
Type of gear
Electronic transformer,
No dim function, 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
true
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Inrush Current Limiter
Yes
Max. number of luminaires Circuit breaker B16
35
Max. Number of luminaires Circuit breaker C16
60
Through-wiring
4 x 1.5 mm²
Housing material
polymer
Colour housing
White
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
Asymmetric beam with indirect downlighting
Adjustability
not adjustable
UGR Value (4H8H)*
17.2
Protection class
II
IP-rating
IP65, IP66, IP69K
Impact strength
IK08
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
Surface mounting, ceiling mounting, wall mounting, single mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
lamp cover replaceable by professional
Energy efficiency class of the light source
D
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
757 mm ± 2 mm
Width
123 mm
Height
165 mm
Mounting dimension a
525 mm ± 4 mm
Dimension b
40 mm
Max. weight
2,4 kg

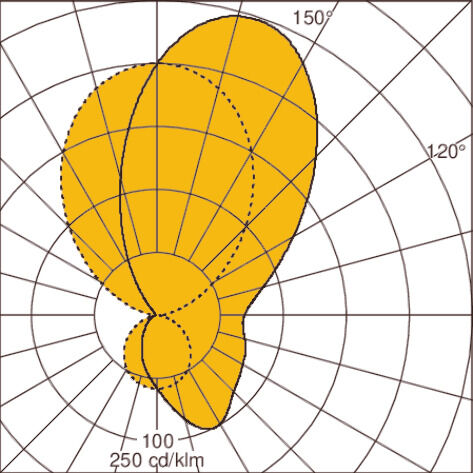

Light distribution curveLOR: 70 %
