GENF

AREAS OF APPLICATION
Very flat polymer luminaire for surface ceiling mounting with LED lamps. Useable in industrial and public applications, multi-storey car parks, swimming pools (see options), and areas near offices with special safety requirements.

HOUSING
Weather-proof and UV-resistant luminaire housing made of fibreglass-reinforced polymer, similar to RAL 9010, with low installed height. Useable for indoor and outdoor areas according to protection rating IP 65. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of siliconefree elastomer.

LIGHTING TECHNOLOGY

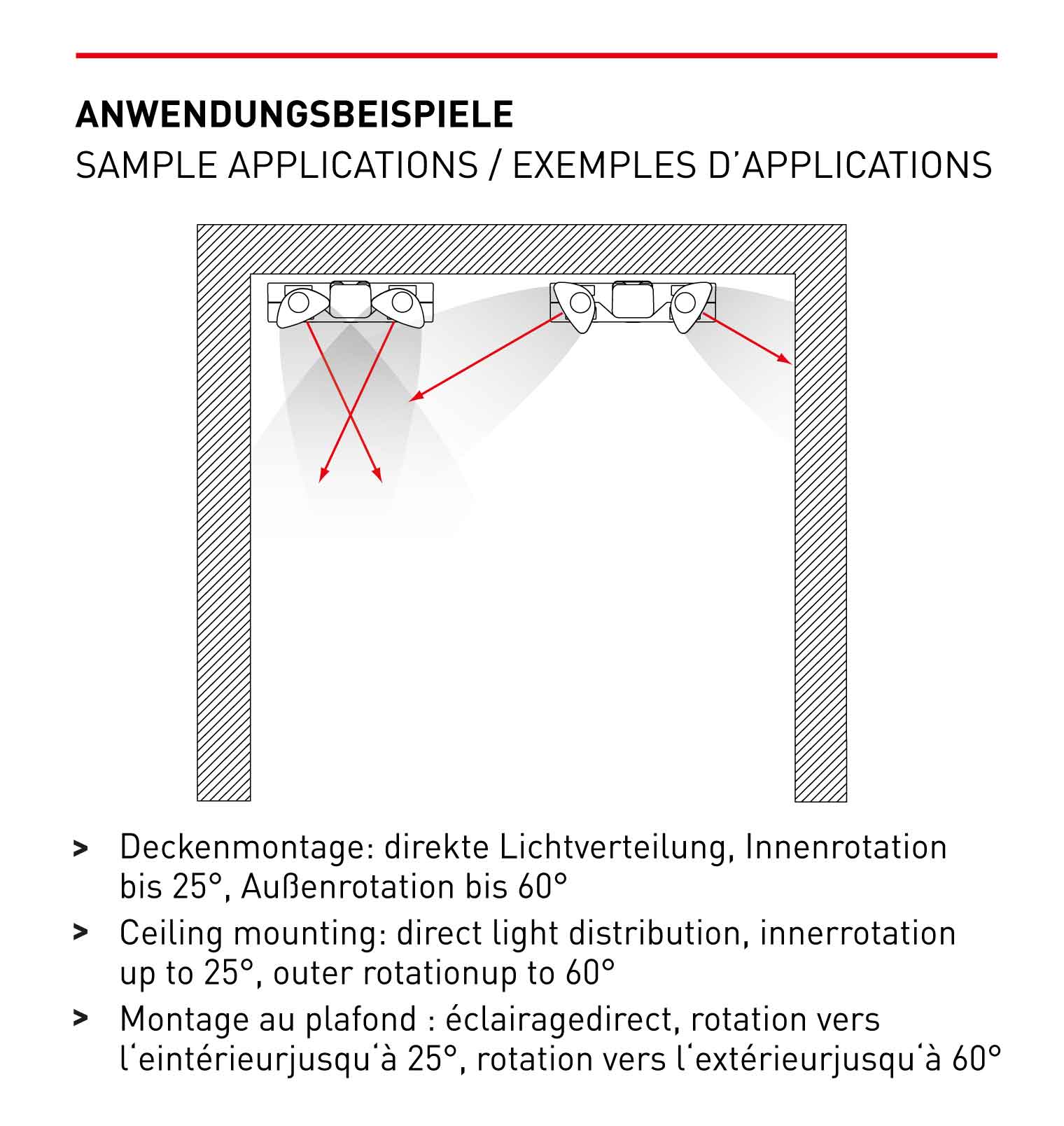

Two reflector tubes that can be swivelled independently made of PMMA Transopal^® (impact strengthened) or PC Tropal^® (fracture proof) with internal aluminium reflector (MIRO-SILVER^®). 25° internal rotation on each reflector tube for focussed light emission and up to 180° external rotation for indirect lighting. For ceiling mounting, the reflector tubes can be swivelled up to 60° outwards.

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC, optionally suitable for emergency lighting. Two face-side cable membranes M20 and 4 x 1.5 mm² through wiring. 2 kV transient filter. Adjustable luminous flux via NFC programming (optionally available).

MOUNTING

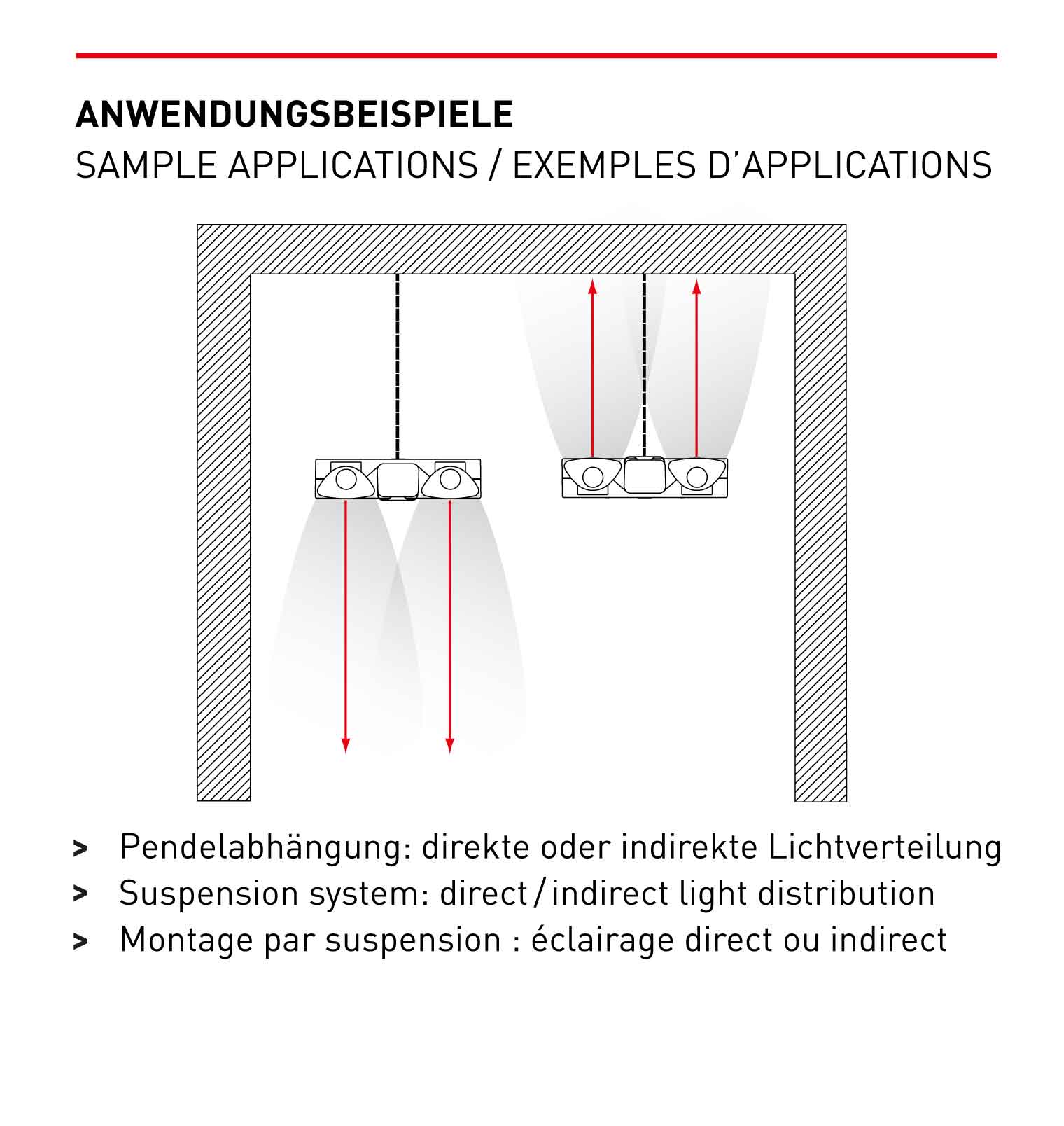

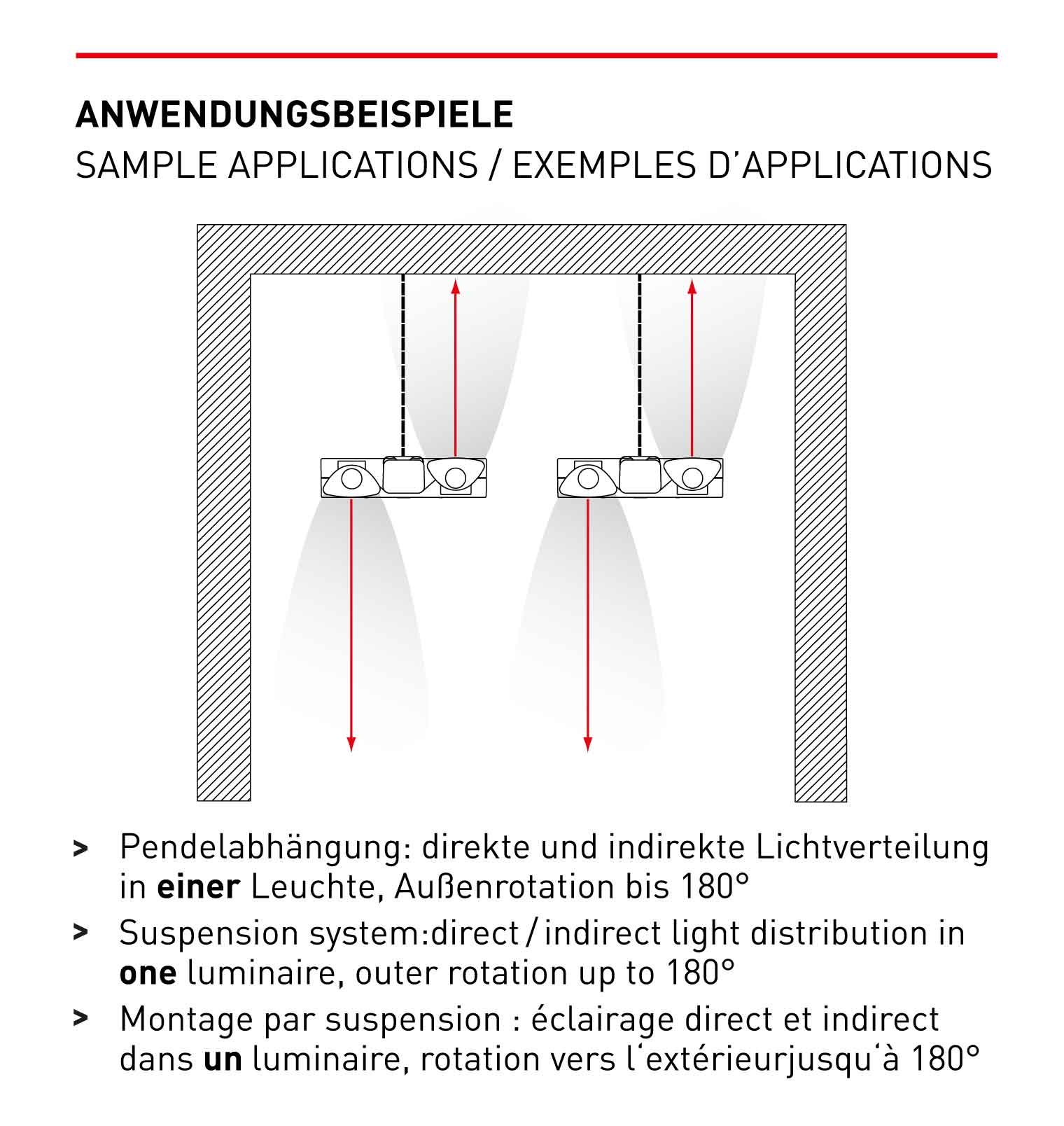

Single or row mounting. Ceiling installation with two polymer mounting clamps, variable mounting distance. Suspension system for up to 180° external rotation on site.
