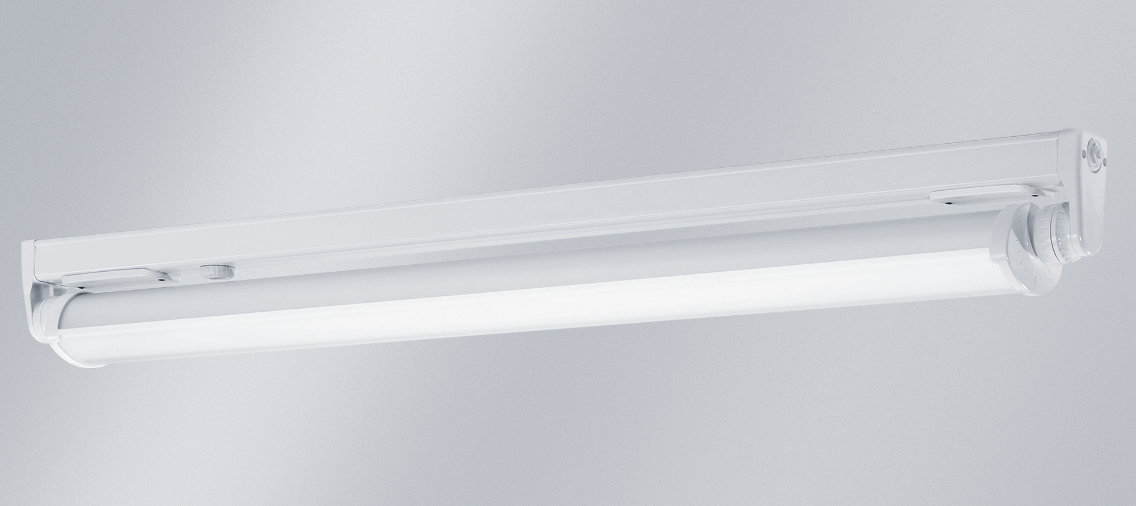

HAMM

AREAS OF APPLICATION
Surface-mounted ceiling luminaire for T5/T8 fluorescent lamps, single or twin lamp. Useable in industrial applications.

HOUSING
Weatherproof luminaire housing made from fibreglass-reinforced polymer, like RAL 9010. For indoor and outdoor areas according to IP65. Thermally separated lamp chamber and ballast chamber. Short sealing system consisting of age-resistant, form-retaining silicone/ synthetic rubber.

LIGHTING TECHNOLOGY
Optionally bare lamp, with 38 mm protection tube made from PC (fracture proof) or silicate glass or with reflector tubes made from PC (fracture proof) or PMMA that can be swivelled with internal aluminium reflector (MIRO-SILVER^®). Reflector tube can be locked continuously.

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and installation. Built-in ballast. Two access covers (130 mm), two cable entries on face side M20 and 2 x 1.5 mm² through-wiring.

MOUNTING
Single or continuous row mounting. Ceiling mounting by two stainless steel mounting clips, variable mounting distance. Quick connection thanks to LUCON^®-luminaire connection system optionally available (see options).
