JENA LED DB m1200

LDP-Prism screen, 3250 lm, 20 W, lamp cover, PMMA Transopal® (impact strengthened), asymmetric beam

7834906423-E-SG01
asymmetric beam
  • led
  • EL
  • IP65
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • db_button
  • IK08_PMMA

Polymer luminaire for recessed ceiling mounting with LED lamps. Useable in panel ceilings with a module width of 100. Suitable, for example, in underground and suburban railway stations, passages, multi-storey car parks. Weather-proof and UV-resistant luminaire housing made of fibreglass-reinforced polymer, similar to RAL 9010. Useable for indoor and outdoor areas according to protection rating IP 65. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/ synthetic rubber. Lamp diffuser made of PMMA Transopal® (impact strengthened). Luminaire ready for mounting and installation. Two access covers, two cable entries M20 and 5 x 2.5 mm² through wiring. Built-in driver, suitable for emergency lighting. Optimised with additional inrush current limiter (ESSB II). 4 kV transient filter. Single or row mounting. Panel fixing for panel width module 100, lengthwise to the panel with stainless steel mounting clamps. Captive end caps.
NOTE
Listed: DB InfraGO Personenbahnhöfe – Group 20 and Group 30 uPVA.

Version
m1200
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
3250 lm
LOR
89.8 %
Luminous flux luminaire
2918 lm
max. System power
20 W
Luminaire efficacy
145.9 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +45°C
Ambient temperature
-25°C to +45°C
Type of gear
Electronic transformer,
No dim function, 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
true
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Inrush Current Limiter
Yes
Max. number of luminaires Circuit breaker B16
40
Max. Number of luminaires Circuit breaker C16
65
Through-wiring
5 x 2.5 mm²
Housing material
Plastic
Colour housing
White
Cover
lamp cover
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
asymmetric beam
Additional screen
LDP-Prism screen
Adjustability
not adjustable
UGR Value (4H8H)*
21.5
Protection class
II
IP-rating
IP65
Impact strength
IK08
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
recessed mounted, recessed mounting, ceiling mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
lamp cover replaceable by professional
Energy efficiency class of the light source
D
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1251 mm ± 2 mm
Length 1
1285 mm
Width
92 mm
Height
132 mm
Mounting dimension a
980 mm ± 80 mm
Max. weight
2,4 kg

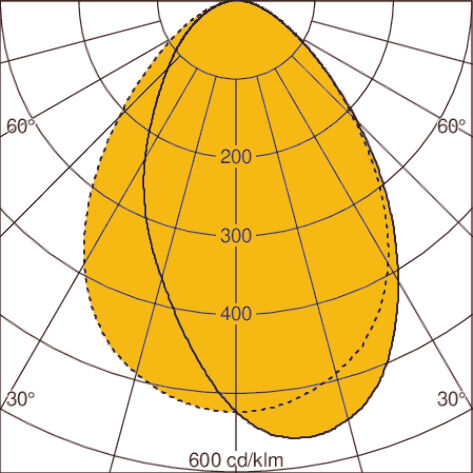

Light distribution curveLOR: 89 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:783010
