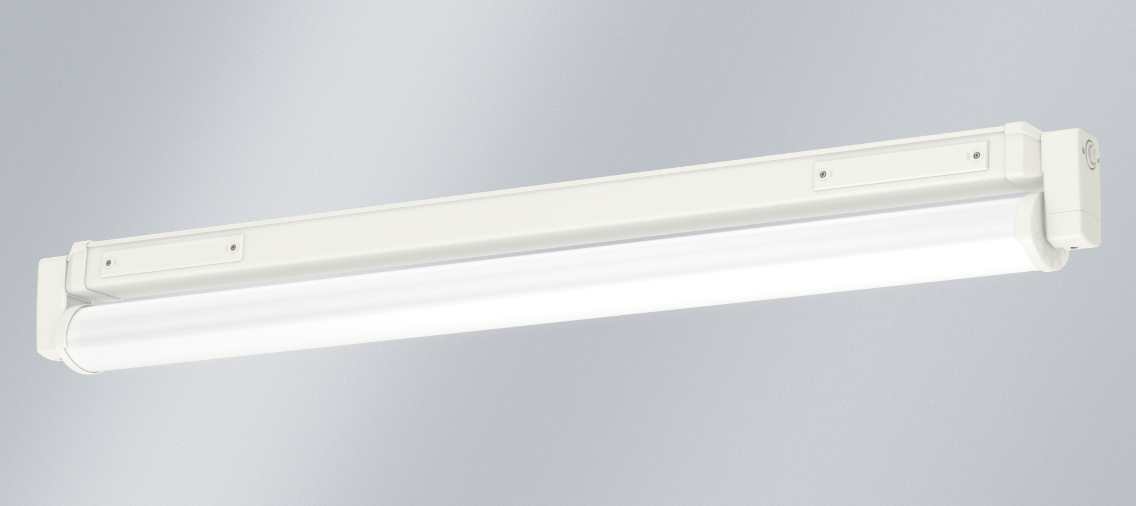

KIRUNA LED

AREAS OF APPLICATION
Polymer luminaire for extreme temperature ranges with LED lamps. Useable in cold areas from -45 °C to +30 °C.

HOUSING
Weather-proof and UV-resistant luminaire housing made of fibreglass-reinforced polymer, like RAL 9010. For indoor and outdoor areas according to protection rating IP65. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber.

LIGHTING TECHNOLOGY
With reflector tubes made from PMMA Transopal^® (impact strengthened) or PC Tropal^® (fracture proof) with inner aluminium reflector (MIRO-SILVER^®). Reflector tube can be locked in steps of 10 °.

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC. Two access covers, two cable entries M20 on the face side and 4 x 1.5 mm² silicone through wiring.
L80 B10 > 100,000 h.

MOUNTING
Single or row mounting. Ceiling fixing with two polymer mounting clamps, variable mounting distance.

FOR INFORMATION
Similar luminaires in different lenghts can be found under the product families
> ERFURT LED up to -25 °C
> ERFURT LED EXTREME up to -40 °C.
