LUTTEROTH

AREAS OF APPLICATION

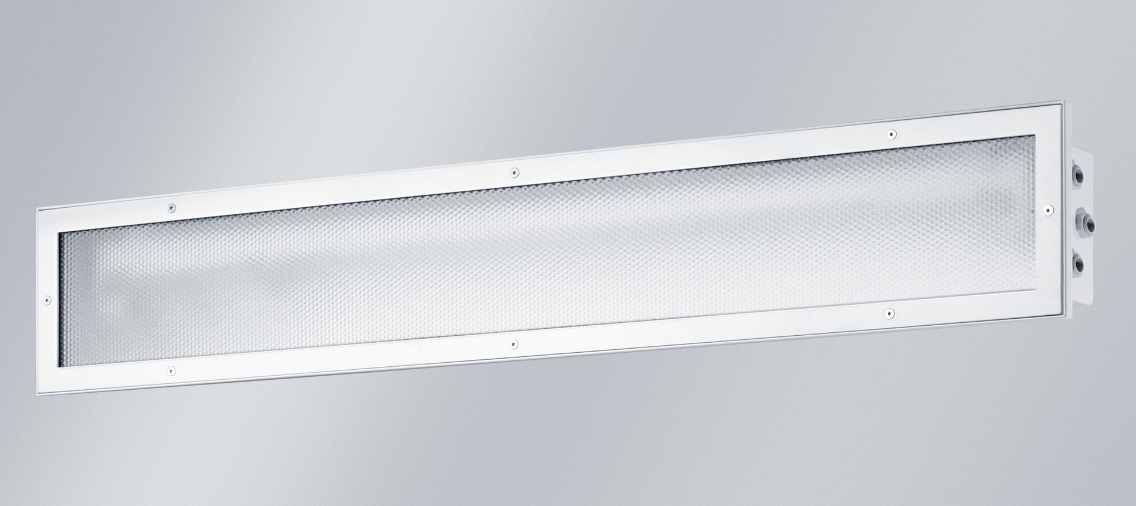

Extremely, impact-resistant recessed luminaire for T5 fluorescent lamps, single lamp, T8 fluorescent lamps, single or twin lamp, vandalism-proof up to 150 joules. Useable in all areas at risk of deliberate vandalism.

HOUSING
Stainless steel installation housing, white powder-coated finish on inside and outside, like RAL 9010, protection rating IP44. With integrated polymer luminaire, protection rating IP65. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber.

LIGHTING TECHNOLOGY
Flat, 3 mm thick cover screen made from PC (fracture proof) prismatic, PC Tropal® (fracture proof), PC (fracture proof) clear structured or PC (fracture proof) opal white with internal aluminium reflector.

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and connection. Built-in ballast. Two access covers, cable entry on face side M20 and 2 x 1.5 mm² through-wiring.

MOUNTING
Single or continuous row mounting. Fixing via four rearward bore-holes, flush on the rear recess wall. Fastening of the luminaire cover using stainless steel sealing screws with hexagon sockets. Subject to technical changes without prior notice.
