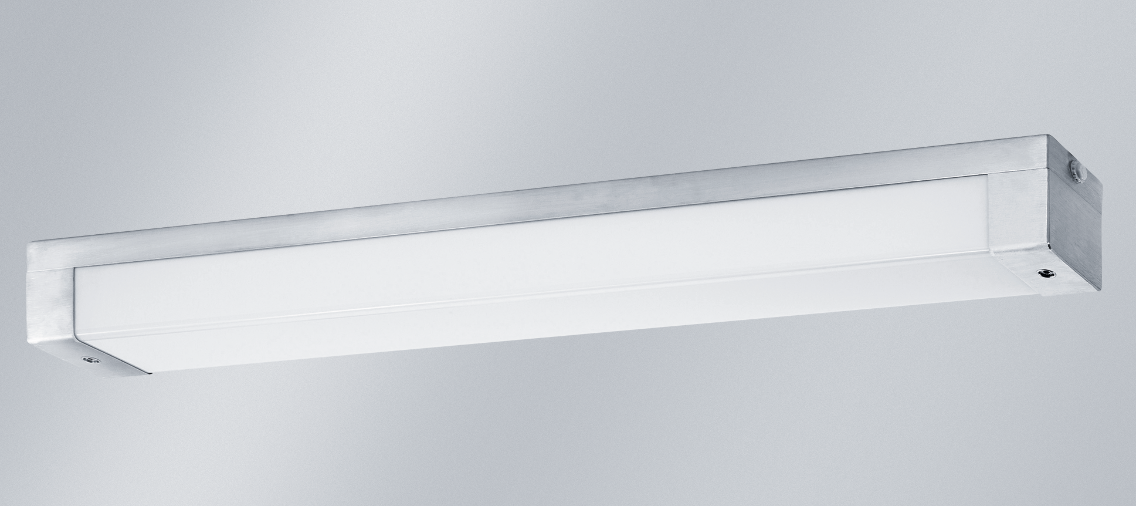

MARBURG

AREAS OF APPLICATION
Extremely impact-resistant surface-mounted luminaire T5/T8 fluorescent lamps, single lamp, vandalism-proof up to 150joules. Useable in prisons, detention cells and all areas at risk of deliberate vandalism.

HOUSING
Stainless steel luminaire housing, smoothed, protection rating IP44. With integrated polymer luminaire, protection rating IP65. Anti-graffiti coating for lamp diffuser optionally available (protects against dirt and paint residue. See options). Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber.

LIGHTING TECHNOLOGY
Rectangular, 4 mm thick luminaire cover made from PC (fracture proof) clear, PC (fracture proof) opal white, PC (fracture proof) clear structured or PC Tropal® (fracture proof) with internal aluminium reflector.

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and connection. Built-in ballast. Two cable entries on face side M20 and 2 x 1.5 mm² through-wiring. Closed face sides with two cable entries optionally available on the rear side.

MOUNTING
Single or continuous row mounting. Ceiling or wall fixing with four concealed mounting apertures on the rear. Luminaire cover fixing with two stainless steel sealing screws with hexagon sockets. Special locking mechanisms optionally available (see options).
