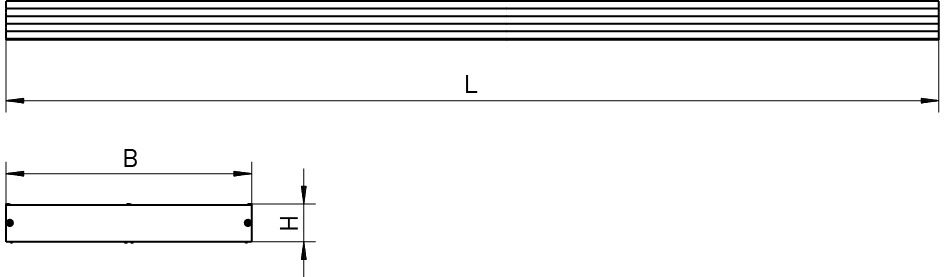

MEDIENKANAL 285 Height 70 mm

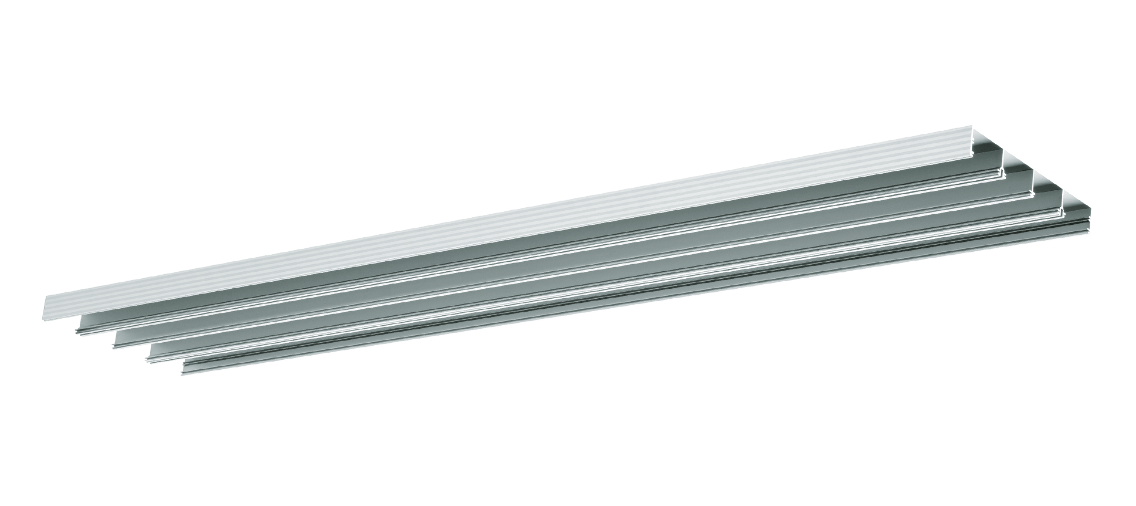

Trunking system with a module width of 285 mm. Mounting accessories for the luminaires TALON, TALON LINEAR and LONDON LED. Useable in underground and suburban railway stations, pedestrian underpasses and tunnels, passages, swimming pools, transport areas and under canopies. Anodised silver extruded aluminium profile in customisable lengths with four subdivided cable ducts or the separate laying of cables for various applications and equipment. Cables and wires are fixed using the four enclosed cable holders in the installation grooves, depending on the standard length. Row mounting. Ceiling installation via rear fixing points, spacing depending on the mounting situation (on site).
Weight version 40 mm height: 4.0 kg/ m, weight version 70 mm height: 5.3 kg/ m.
Price per meter or part thereof.

Selected accessories will appear on the datasheet.
