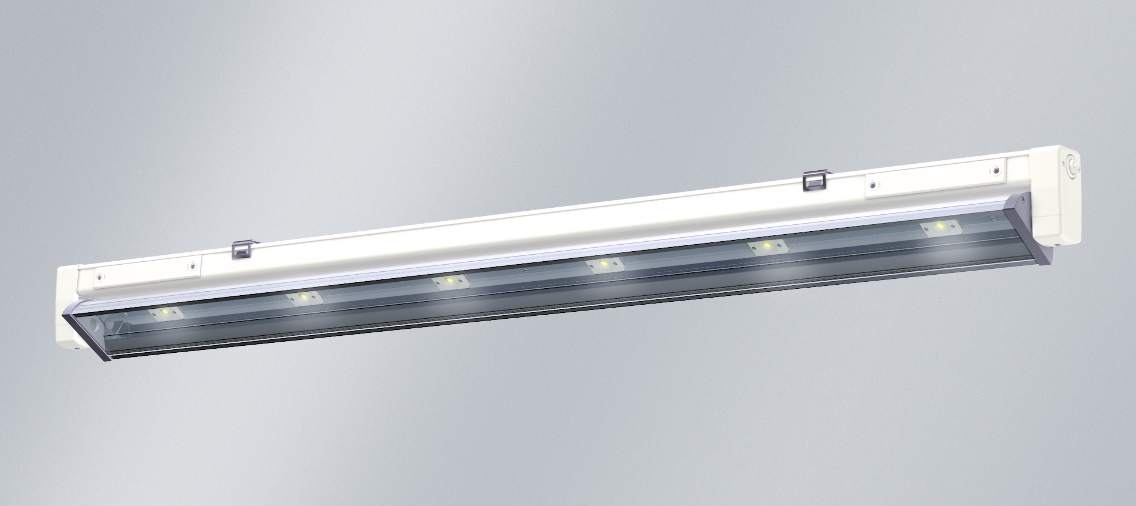

METIS

AREAS OF APPLICATION
Luminaire with reflector tube with LED, single or twin lamp. Useable in for general industrial lighting, industrial workshops, assembly workshops, storage and dispatch facilities and areas with special safety requirements.

HOUSING
Weather-proof luminaire housing made of fibreglass reinforced polymer, similar to RAL 9010. Reflector tube made of extruded, silver anodised aluminium. Thermally separated lamp chamber and driver chamber. Sealing system made of age-resistant, form-retaining silicone/synthetic rubber. Reflector tube can be locked in steps of 10 °. Useable for indoor and outdoor areas according to protection rating IP65, protection classII.

LIGHTING TECHNOLOGY
LED arrays in the colour temperatures warm white, neutral white and cold white as high CRI version with colour temperature 930. Reflector tube with cover screen made of PMMA clear, PC clear (fracture-proof) or PMMA Transopal^®. Internal aluminium reflector (MIRO-SILVER^®). Specially designed end caps on the reflector tube allow a prism screen to be inserted.

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and installation. Built-in driver, 230 V AC/DC supply voltage, emergency light compatible. Ready for connection using two cable entries on face side and 4 x 1.5 mm² through wiring.

MOUNTING
Single or continuous row mounting as surface mounted or recessed luminaire with accessories. Ceiling fixing using two stainless steel mounting clips. Quick-mounting pressure cap with LUCON^® luminaire connection system optionally available (see options).
