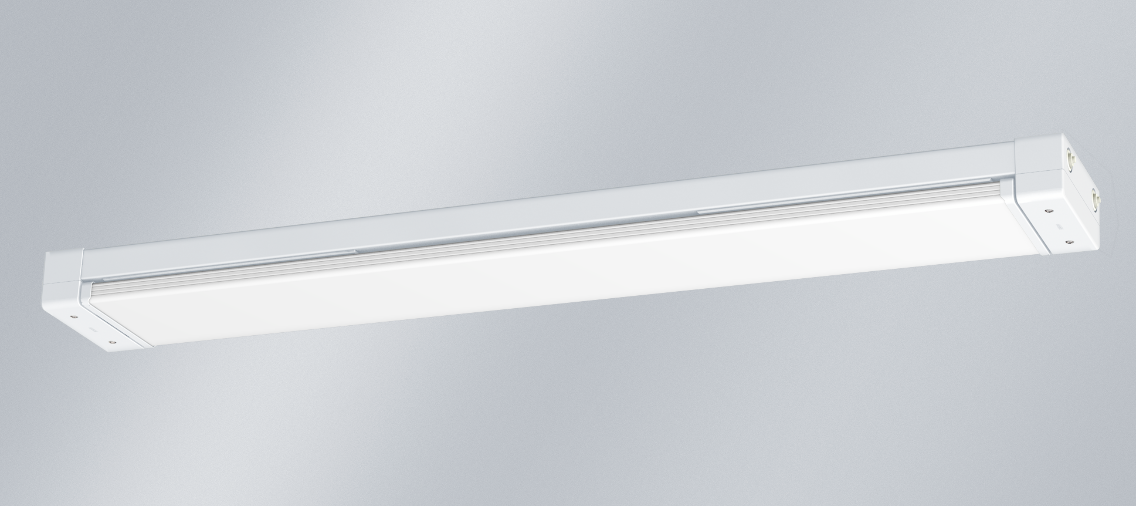

MÜNCHEN

AREAS OF APPLICATION
Luminaire for surface and recessed ceiling mounting for T5 single or twinlamp fluorescent lamps and T8 singlelamp fluorescent lamps. Useable, for example, in underground and metro stations, passages, multi-storey car parks and swimming pools.

HOUSING
Flat, weatherproof luminaire housing made of fibreglass-reinforced polymer, like RAL 9010, with low installed height. For indoor and outdoor areas according to IP65. Thermally separated lamp chamber and ballast chamber. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber.

LIGHTING TECHNOLOGY
Lamp diffuser made of PC (fracture proof) or PMMA with internal aluminium reflector (MIRO-SILVER®).

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and connection. Built-in ballast. Two large access covers (370 mm), four cable entries on face side M20 and 4 x 1.5 mm² through-wiring.

MOUNTING
Single or continuous row mounting. Ceiling fixing using easy-assembly split washers. Captive end caps. Quick maintenance thanks to NORKA RAPID SYSTEM with lamp guide. Ceiling mounting frame and universal panel suspensions optionally available (see accessories). Subject to technical changes without prior notice.
