NIGHTLINE DB m1200 V1

LDP-Prism screen, 3030 lm, 23 W, PC (fracture proof) clear, asymmetric beam

7884906443-SG1
asymmetric beam
  • led
  • EL
  • IP65
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • db_button
  • IK09_PC

Continuous-row lighting system made of anodised extruded aluminium profile with LED lamps. Continuous, homogeneous light emission. Useable in underground and metro stations, multi-storey car parks, foyers. Weather and age resistant extruded profile made of anodised aluminium. Useable for indoor and outdoor areas according to protection rating IP 65. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber. Optimum colour rendering of red tones by special LED modules with an increased R9 value (> 77). Lamp diffuser made of PC clear with LDP screen with internal aluminium reflector (MIRO-SILVER®). Luminaire insert ready for mounting and installation. Through wiring 5 x 2.5 mm² (DALI 7 x 2.5 mm²) with plug-and-socket system. DB (Deutsche Bahn) version: Built-in driver with secondary safety extra low voltage according to DIN VDE 0100-410 (SELV). Optimised with additional inrush current limiter (ESSB II). 4 kV transient filter. Continuous row mounting of the aluminium profile to the ceiling module.
NOTE DB (Deutsche Bahn) version:
Listed: DB InfraGO Personenbahnhöfe – Group 20 and 30.

NOTE:
Maximum weight of the NIGHTLINE continuous row version per meter: 12 kg. For more information on the planning of the continuous row light system, see installation instructions.

Version
m1200 V1
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
3030 lm
LOR
81.1 %
Luminous flux luminaire
2457 lm
max. System power
23 W
Luminaire efficacy
106.82 lm/W
Colour temperature
White, 940/4000 K, Ra > 90
Lamp service life
L80 B10 > 60,000 h at +45°C
Ambient temperature
-25°C to +45°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
true
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Inrush Current Limiter
Yes
Max. number of luminaires Circuit breaker B16
35
Max. Number of luminaires Circuit breaker C16
60
Through-wiring
5 x 2.5 mm² (7 x 2.5 mm² if DALI)
Terminals
5 pole (7 pole if DALI)
Pole identification
L2, L3, N, E, L1, (D1, D2 if DALI)
Housing material
polymer
Colour housing
White
Material of the cover
PC (fracture proof) clear
Light distribution
asymmetric beam
Additional screen
LDP-Prism screen
Adjustability
not adjustable
UGR Value (4H8H)*
23.2
Protection class
II
IP-rating
IP65
Impact strength
IK09
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Halogen-free
Yes
Installation type
row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
lamp cover replaceable by professional
Energy efficiency class of the light source
D
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1163 mm ± 2 mm
Width
152 mm
Height
186 mm
Mounting dimension a
500 mm ± 25 mm
Max. weight
3,1 kg

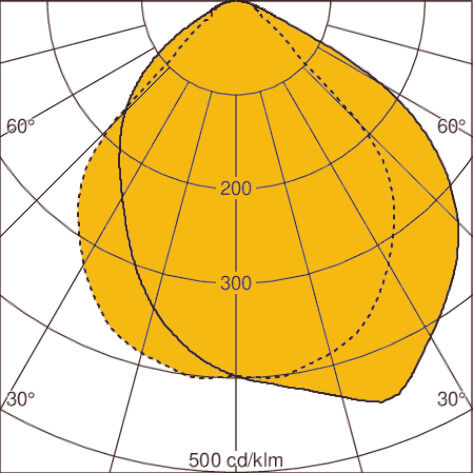

Light distribution curveLOR: 81 %
