9891930446-H1

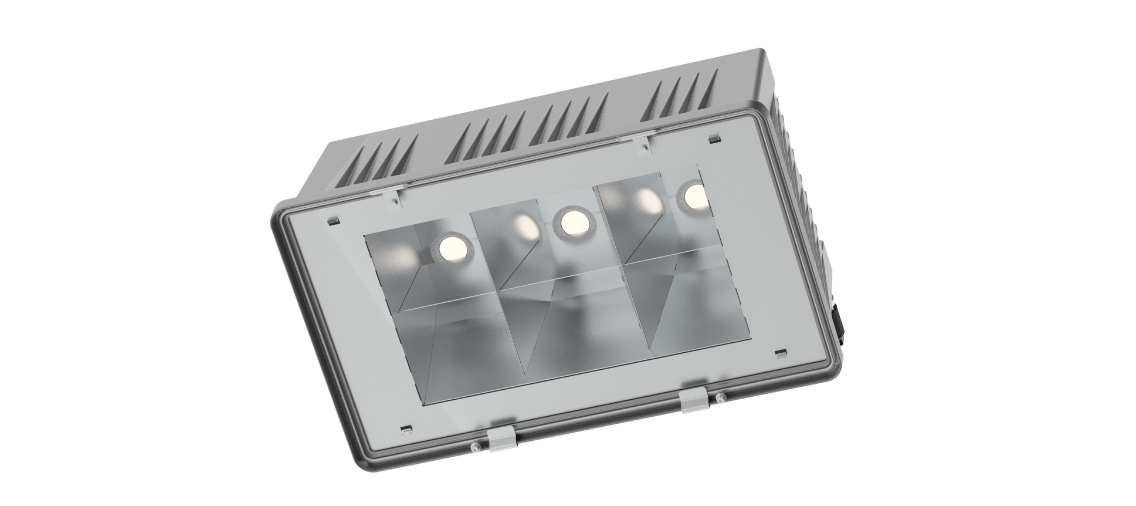

POLARIS DB 193 SK II

23724 lm, 149 W, PC (fracture proof) clear, concentrated beam, prepared for pendulum mounting

9891930446-H1
concentrated beam
  • led
  • EL
  • IP65
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • lucon
  • db_button
  • IK10_PC

Floodlight with LED array. Useable in platform and factory halls. Robust luminaire housing, made of cast aluminium with coated surface, colour similar to RAL 9006, and bird protection cover. Useable for indoor and outdoor areas according to protection rating IP 65. Sealing system made of age-resistant, form-retaining silicone/synthetic rubber. Hinged, frameless cover screen made of PC (fracture proof) clear. Internal aluminium reflector (MIRO-SILVER®). Luminaire ready for mounting and installation. DB (Deutsche Bahn) Version: Built-in DALI-driver, supply voltage 220-240 V AC/DC. Ready for connection via LUCON® luminaire connection system. Luminaire prepaired for suspension system.

NOTE DB (Deutsche Bahn) VERSION:
Listed: DB InfraGO Personenbahnhöfe – Groupe 40

Version
193 SK II
Lamp
LED array
Number of lamps
3-lamp
Luminous flux lamp
23724 lm
LOR
81.3 %
Luminous flux luminaire
19287 lm
max. System power
149 W
Luminaire efficacy
129.44 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +45°C
Ambient temperature
-25°C to +45°C
Type of gear
LED operating device current-controlled,
DALI (additional 2 x 1.5 mm² control line), 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
true
Inrush Current Limiter
Yes
Max. number of luminaires Circuit breaker B16
8
Max. Number of luminaires Circuit breaker C16
12
Housing material
aluminium
Colour housing
Aluminium similar to RAL 9006
Material of the cover
PC (fracture proof) clear
Light distribution
concentrated beam
Adjustability
Not adjustable
UGR Value (4H8H)*
19.1
Protection class
II
IP-rating
IP65
Impact strength
IK10
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Resistance
dustproof, ammonia resistant, water proof
Installation type
single mounting, wire suspension, Surface mounting, ceiling mounting
Type of attachment
prepared for pendulum mounting
Replaceability of control gear
control gear replaceable by professional
Energy efficiency class of the light source
E
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.

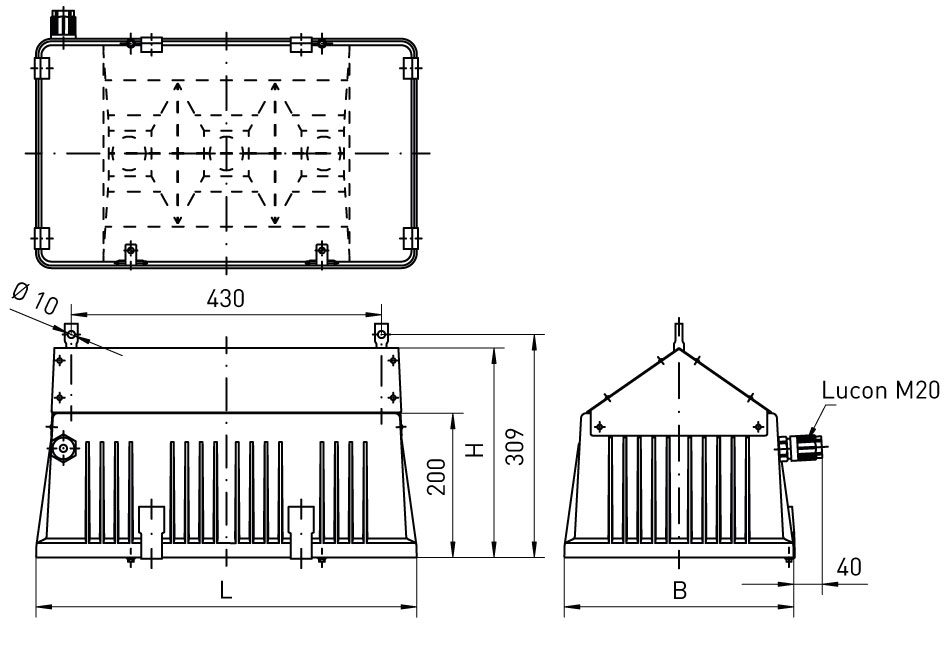

Dimensional Drawing
Length
528 mm
Width
318 mm
Height
290 mm
Mounting dimension a
430 mm
Max. weight
14,0 kg

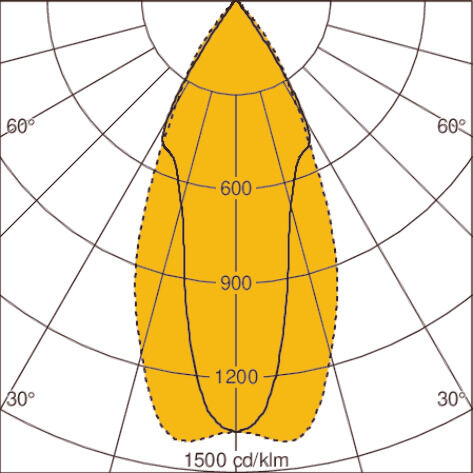

Light distribution curveLOR: 81 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:988960
