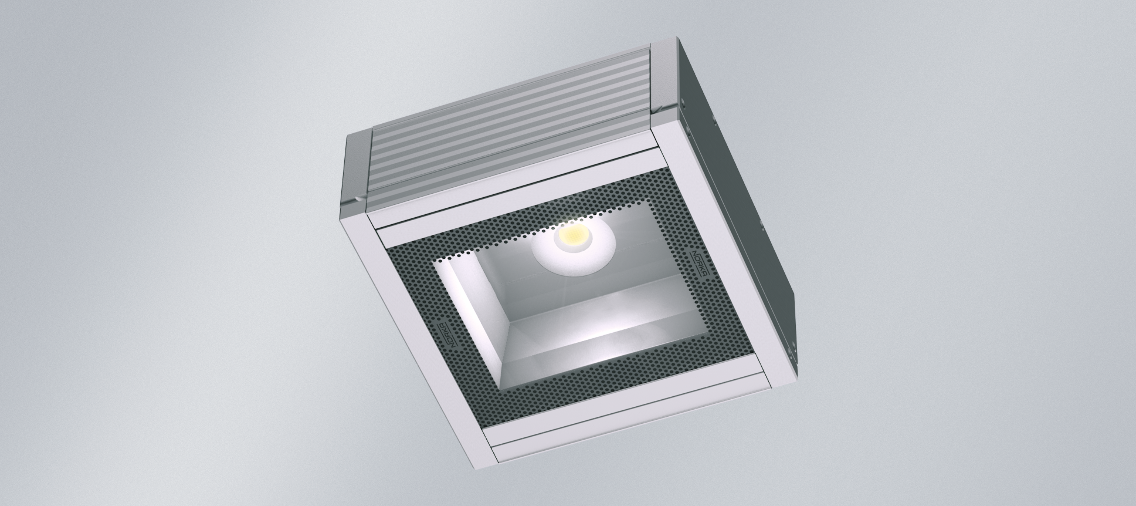

TRITON

AREAS OF APPLICATION

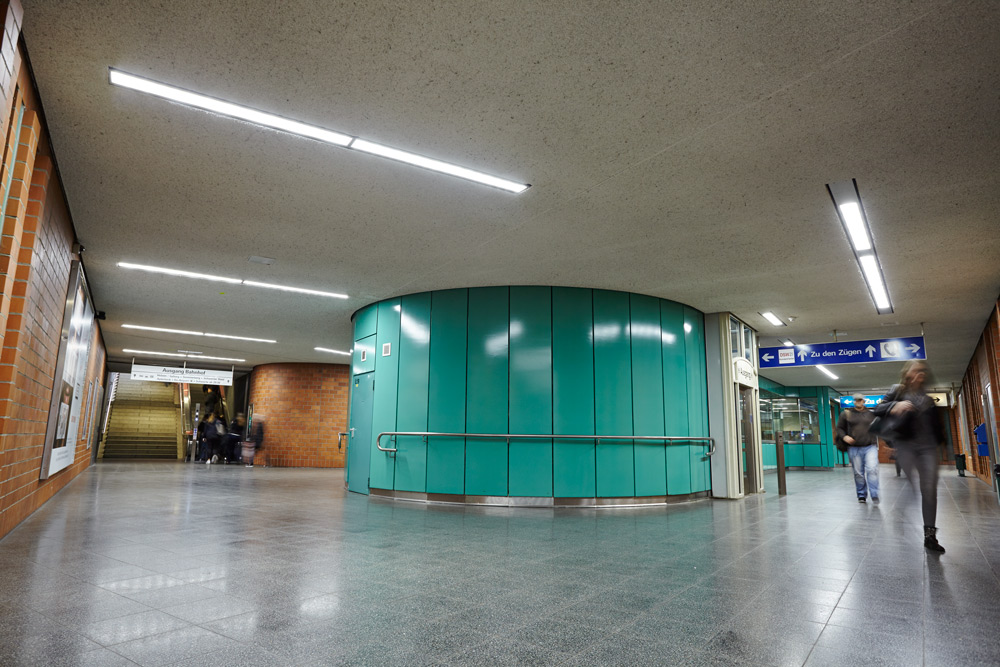

Luminaire for recessed and surface ceiling mounting with LED array, single lamp. Useable in underground and metro stations, pedestrian tunnels, passages, multi-storey car parks, swimming pools, transport areas, under canopies and façades.

HOUSING
Silver anodised aluminium profile housing. Hinged cover screen made of PMMA or PC (fracture proof). IP65 protection rating, protection classII.

LIGHTING TECHNOLOGY
LED arrays in warm white, neutral white and cold white colour temperatures. Clear cover screen made of PMMA or PC (fracture-proof) with printed image, or white printed cover screen made of PMMA or PC (fracture- proof), or PMMA Transopal^® without printed image. Internal aluminium reflector, extremely wide beam. Version with integrated prism screen for rotation-symmetric glare reduction (CDP), wide beam.

ELECTRICAL CONSTRUCTION
Built-in driver, 230 V AC/DC supply voltage. Ready for connection via a rear-mounted cable entry. 2 kV transient filter.

MOUNTING
Single mounting. Optionally continuous row version or on the NORKA 185 trunking system. Ceiling fixing via rear 2/4-point fixing system.
