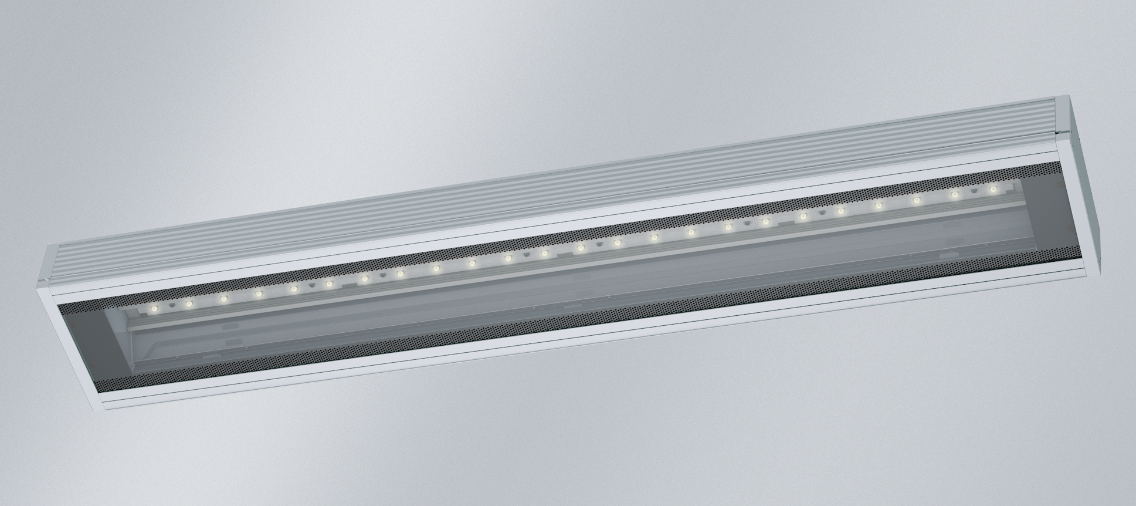

TRITON LINEAR LED STRIPE

AREAS OF APPLICATION

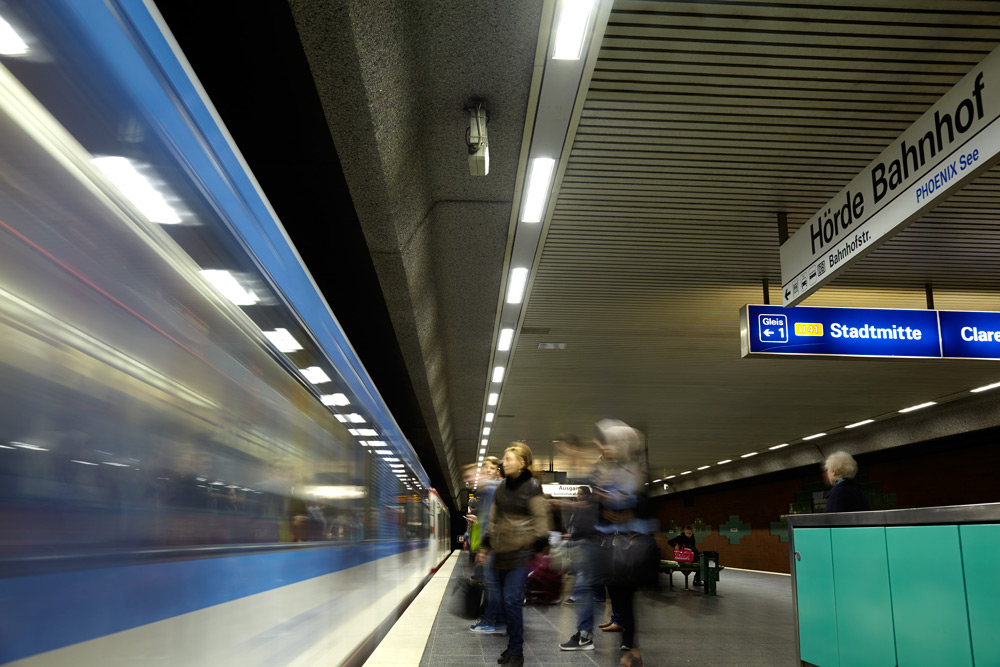

Luminaire for recessed and surface ceiling mounting with LED stripe, single lamp. Useable in underground and metro stations, pedestrian tunnels, passages, multi-storey car parks, swimming pools, transport areas and under canopies.

HOUSING
Silver anodised aluminium profile housing. Hinged, clear cover screen made of PMMA or PC (fracture proof). Protection rating IP65, protection class II.

LIGHTING TECHNOLOGY
LED board in neutral white colour temperature. Clear cover screen made of PMMA or PC (fracture-proof) with printed image, or white printed cover screen made of PMMA or PC (fracture-proof), or PMMA Transopal^® without printed image. Internal aluminium reflector with adapter for a changeable prism screen for optional glare reduction. Fresnel lenses preassembled at the factory with a variety of beam angles.

ELECTRICAL CONSTRUCTION
Built-in driver, 230 V AC/DC supply voltage, through wiring, 4 x 1.5 mm². Ready for connection via a rear-mounted cable entry. 2 kV transient protection.

MOUNTING
Single mounting. Optionally continuous row version or on the NORKA 185 trunking system. Ceiling fixing via rear 4-point fixing system. Quick maintenance thanks to hinged cover screen with tool-free opening.
