5582803542

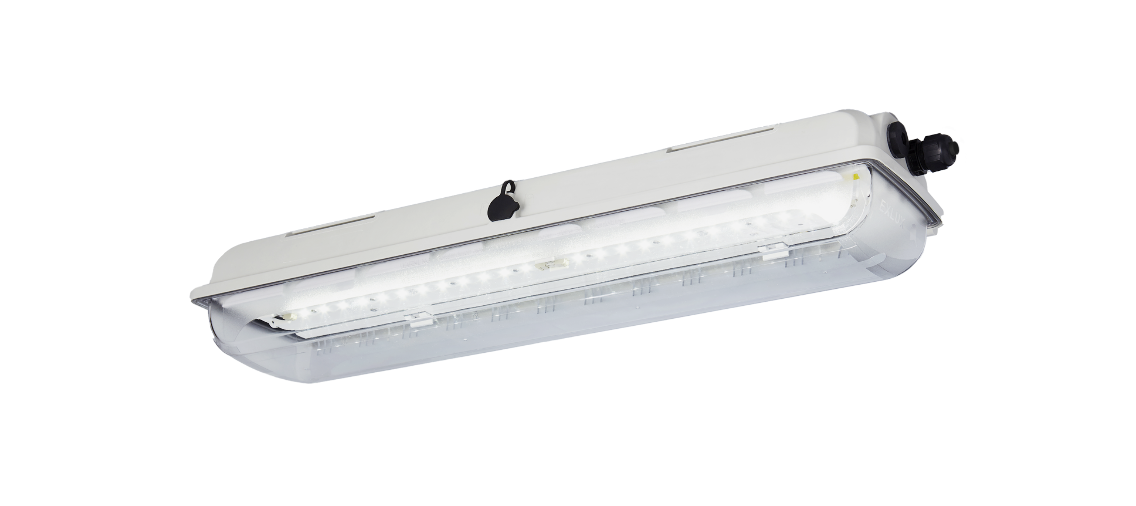

WEIMAR m600

3000 lm, 18 W, lamp cover, PC (fracture proof) clear, medium beam, with safety switch

5582803542
medium beam
  • led
  • IP66
  • IP67
  • ce
  • protection_class_I
  • zone1
  • zone2
  • zone21
  • zone22
  • IK10_PC

Explosion-proof surface mounted ceiling luminaire made of polymer with LED lamps. Useable in industrial applications with explosive atmospheres according to zone 1, 2, 21 and 22. Designed according to the applicable European Directives. Luminaire housing made of fibreglass-reinforced polymer, similar to RAL 7035. Useable for indoor and outdoor areas according to protection rating IP 66 an IP 67 (m600 and m1200). Sealing system consisting of age-resistant elastomer. Lamp cover made of PC (fracture proof) clear with internal diffusor. Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC. Two cable entries on one face side, one cable entry on the other face side. Two cable glands M25 and two sealing plugs M25 enclosed. Through wiring 5 x 2.5 mm². Single or row mounting. Ceiling installation via two threads M8 and separate mounting parts (see accessories).

Manufactured by our partner R. Stahl.
Certificate no. IBExU 14 ATEX 1088 and IECEx IBE 14.0035.

Lamp service life L90 B50 > 100.000 h at Ta +25 °C.

Version
m600
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
3000 lm
LOR
100 %
Luminous flux luminaire
3000 lm
max. System power
18 W
Colour temperature
White, 850/5000 K, Ra > 80
Ambient temperature
-40°C to +50°C
Type of gear
LED operating device current-controlled,
No dim function, 100 V - 240 V AC/DC
Max. number of luminaires Circuit breaker B16
19
Max. Number of luminaires Circuit breaker C16
33
Through-wiring
5 x 2.5 mm²
Ex-zone
1, 2, 21, 22
Ex-classfication
Ex db eb ib op is IIC T4 Gb
Ex tb op is IIIC T100 °C Db
Ex-Icon II 2 G Ex db eb ib op is IIC T4 Gb
Ex-Icon II 2 D Ex tb op is IIIC T100 °C Db
Socket
Other
Housing material
polymer
Colour housing
other
Cover
lamp cover
Material of the cover
PC (fracture proof) clear
Light distribution
medium beam
Light output
direct
Adjustability
not adjustable
UGR Value (4H8H)*
24
Protection class
I
IP-rating
IP66, IP67
Impact strength
IK10
Installation type
Surface mounting, ceiling mounting, single mounting, row mounting
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.

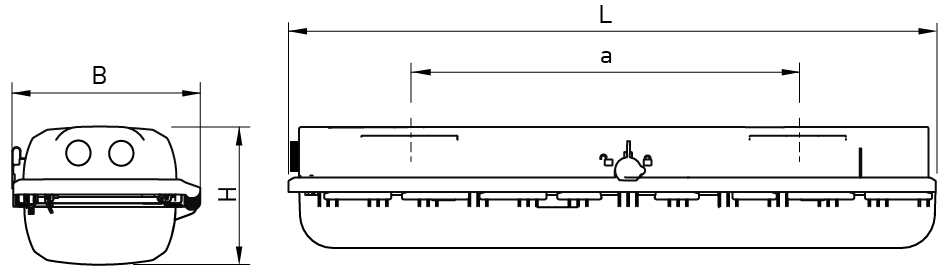

Dimensional Drawing
Length
700 mm
Width
184 mm
Height
125 mm
Mounting dimension a
400 mm
Max. weight
4,1 kg

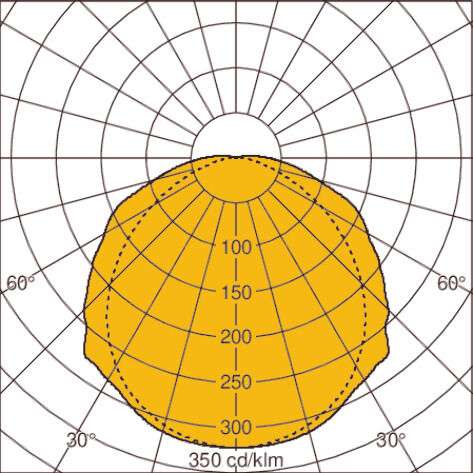

Light distribution curveLOR: 100 %
Accessories

Selected accessories will appear on the datasheet.

Version
  • article-number:558007
  • article-number:558003
  • article-number:558004
  • article-number:558005
  • article-number:558001
  • article-number:558002
  • article-number:558006
