ZUG LED AL DB m1200

3030 lm, 22 W, protection tube, PC Tropal® (fracture proof), medium beam

7224803484-SG1
medium beam
  • led
  • EL_optional
  • IP65
  • IP66
  • IP67
  • IP68_20m
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • db_button
  • IK11_PC

Extremely impact-resistant surface mounted ceiling luminaire with LED lamps. Vandalism-proof up to 50 joules. Useable in prisons, detention cells and all areas at risk of deliberate or negligent destruction. Polymer luminaire tube (Ø 75 mm) with two quick-mounting pressure caps in vandalism-proof, polished stainless steel housing. Useable for indoor and outdoor areas according to protection rating IP 65, IP 66 and IP 67. Resistant to pressurised water to 20 m due to protection rating IP 68, 20 m. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K. 4 mm thick cover screen made of PC Tropal® (fracture proof). Optimum colour rendering of red tones by special LED modules with an increased R9 value (> 77). Luminaire ready for mounting and installation. Luminaire housing with three rear-side cable entries M20 and 4 x 1.5 mm² through-wiring. DB (Deutsche Bahn) version. Built-in driver with secondary safety extra low voltage according to DIN VDE 0100-410 (SELV). Optimised with additional inrush current limiter (ESSB II). 4 kV transient filter. Single mounting. Ceiling or wall mounting with two or four concealed rearward mounting apertures.

NOTE DB (Deutsche Bahn) version:
Listed: DB InfraGO Personenbahnhöfe – Group 30.

Version
m1200
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
3030 lm
LOR
96.3 %
Luminous flux luminaire
2917 lm
max. System power
22 W
Luminaire efficacy
132.5 lm/W
Colour temperature
White, 940/4000 K, Ra > 90
R9 red saturated > 46
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +45°C
Ambient temperature
-25°C to +45°C
Type of gear
LED operating device current-controlled,
230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
optional
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Max. number of luminaires Circuit breaker B16
35
Max. Number of luminaires Circuit breaker C16
60
Through-wiring
4 x 1.5 mm²
Housing material
stainless steel
Colour housing
Stainless steel
Cover
protection tube
Material of the cover
PC Tropal® (fracture proof)
Light distribution
medium beam
Adjustability
Swivelling
UGR Value (4H8H)*
22.9
Protection class
II
IP-rating
IP65, IP66, IP67, IP68 20m, IP69K
Impact strength
IK11
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Resistance
Impact resistant, water proof
Installation type
Surface mounting, ceiling mounting, wall mounting, single mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
LED tray replaceable by professional
Energy efficiency class of the light source
D
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1566 mm ± 2 mm
Width
82 mm
Height
86 mm
Mounting dimension a
1350 mm ± 1 mm
Dimension b
360 mm ± 1 mm
Max. weight
8,0 kg

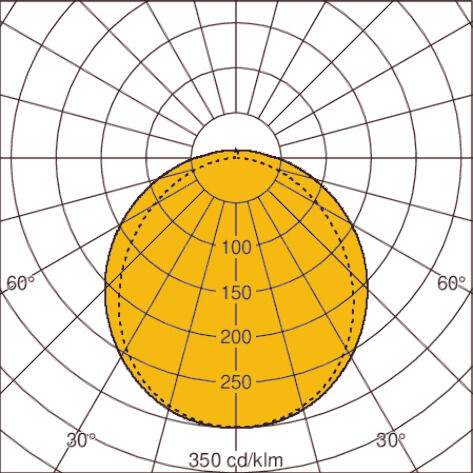

Light distribution curveLOR: 96 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:100502
  • article-number:On request
