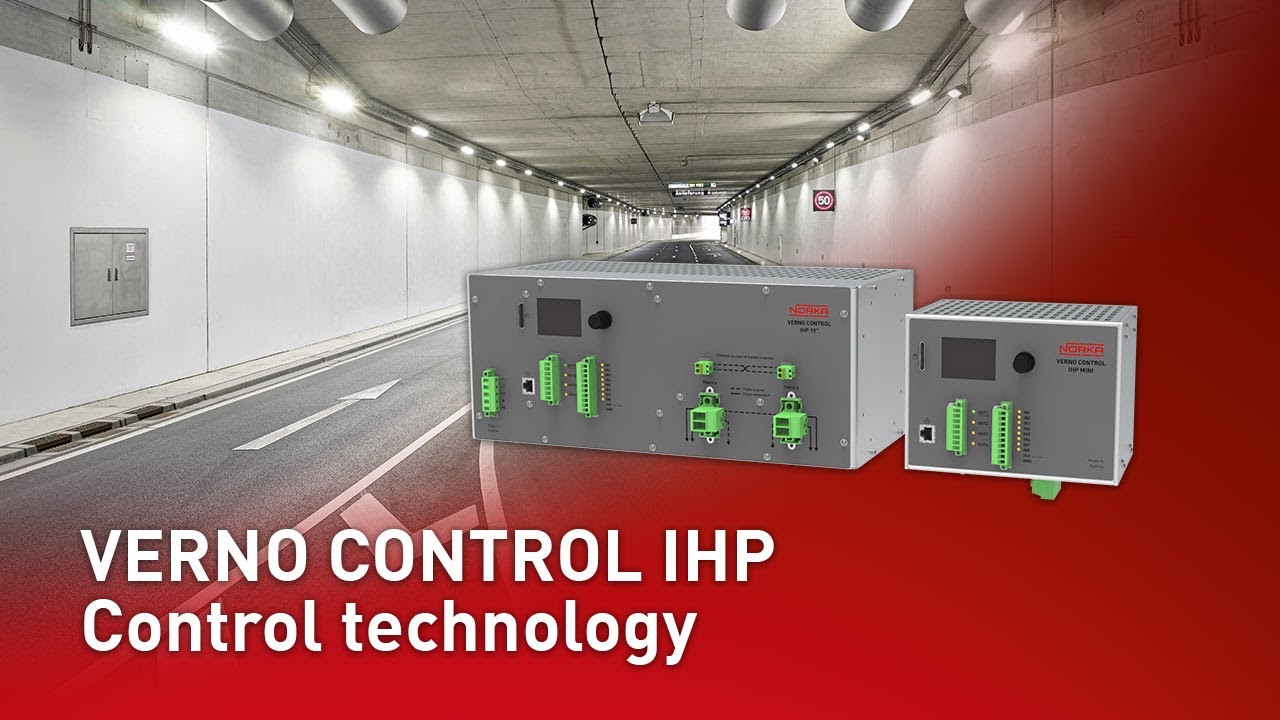

CONTROL TECHNOLOGY VERNO CONTROL IHP (Inductive High Power)

Safety control for traffic guidance in tunnels or underpasses

With its own product division VERNO (which stands for the German word for traffic, VERKEHR, and NORKA), NORKA offers lighting solutions for traffic and products for active traffic guidance.

The new generation of VERNO CONTROL IHP control technology simplifies the inductive operation of our active LED guiding system (VERNO LINE IHP) in tunnels or underpasses. State-of-the-art control technology combines high-performance hardware, the latest software and intelligent operating modes and ensures safe lighting control for traffic guidance.

Full inductivity of the VERNO LINE IHP system

The light control and power supply of the inductive LED guiding system is contactless, using a supply line running through the kerb and appropriate induction couplers. Active lights are glued or screwed to the kerb or wall and can be replaced easily if necessary. Another advantage of an inductively operated LED lighting system is the lower number of clamping units, which reduces the failure quota of the VERNO LINE IHP system.

Learn about our latest control technology!

Versions and features of the VERNO CONTROL IHP controller

Control system for precise project requirements

We offer different versions of the VERNO CONTROL IHP control system to implement individual project requirements more efficiently and optimise project costs. Our controllers vary in terms of their sizes and power stages and the resulting maximum cable lengths, which are different depending on the operating mode.

VERNO CONTROL IHP MINI

• 700 watts rated power

• max. 550 m cable length

• cost-effective solution for short distances (e.g., underpasses)

VERNO CONTROL IHP 19“ 1250

• 1,250 watts rated power

• max. 2,600 m cable length

• 19-inch rack, fits all industry-standard racks as well as for wall mounting

VERNO CONTROL IHP 19“ 2500

• 2,500 watts rated power

• 1x max. 2,600 m cable length

• 2x max. 1,600 m cable length each (two separate outputs)

• 19-inch rack, fits all industry-standard racks as well as for wall mounting

• control up to two separate supply lines

Control components and features

Controllable functions

Individual flashing modes, brightness control in eight levels and day/night regulation.

SD card slot

Loading customised software and rolling out software updates.

Ethernet interface

Reading out control data and any bug fixing in the event of servicing.

Display

Showing operating data on the display.

Additional features for the VERNO CONTROL IHP ‘I’ (Intelligent) and PLUS versions

VERNO CONTROL IHP I

Intelligent operating mode

Separate control and switch-off of the back of the LED module, depending on national regulations.

VERNO CONTROL IHP PLUS

Individual monitoring

Monitoring of the single LED guiding and lighting systems as well as fault message in case of error or failure.

Correct certification

TÜV-certified control technology for inductive LED guiding systems

Our controllers are TÜV-certified and compliant with the following EU directives:

• EMC (Electromagnetic Compatibility)

• RED (Radio Equipment Directive)

• LVD (Low Voltage Directive)
