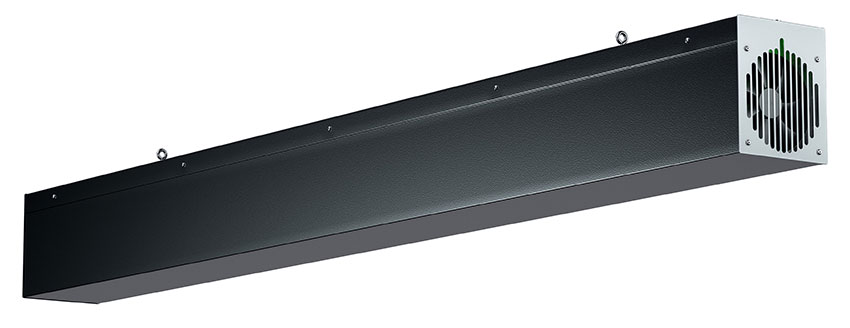

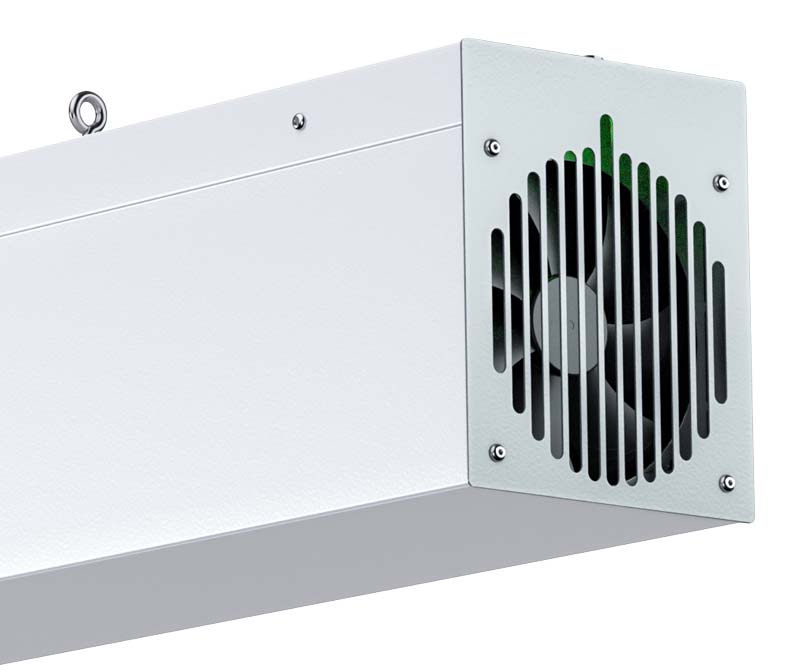

Buenos Aires uv-C - Safety through light
Air Disinfection with UV-C Technology
The BUENOS AIRES UV-C air disinfection unit can also reduce the virus load in areas where no ventilation systems have previously been used to disinfect the ambient air, such as in waiting rooms at doctors’ surgeries, in classrooms, social and recreation rooms or small production rooms.
People present? - No problem!
Extremely quiet thanks to its 20 decibels
60 m³ space in 34 minutes
How does it work?

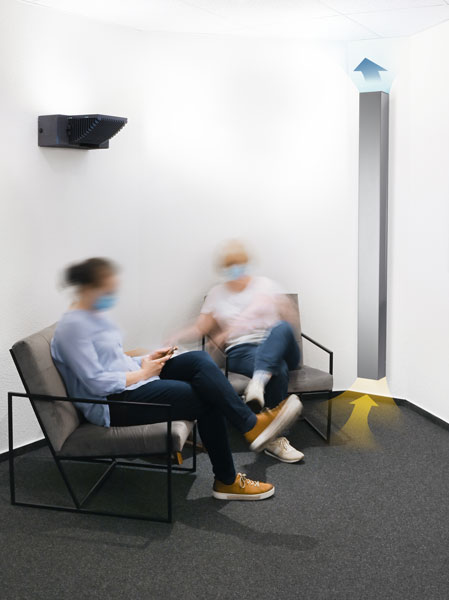

The BUENOS AIRES UV-C unit provides an easy way to disinfect the air of waiting rooms, classrooms or seminar rooms.
People present? - No problem!
Many air disinfection systems can only be operated in unused rooms or require elaborate planning in order to rule out any harm to room occupants from UV-C radiation. The BUENOS AIRES UV-C air disinfection unit, however, can be used even when there are people in the room. The housing design ensures that harmful radiation cannot penetrate to the outside. This allows the BUENOS AIRES UV-C air disinfection unit to be used, for example, in waiting rooms in doctors’ surgeries, in classrooms, seminar rooms or small production rooms even when these are occupied.
How does the BUENOS AIRES UV-C disinfection unit work?
The air is actively drawn into the BUENOS AIRES UV-C air disinfection unit by a fan. Bacteria, fungi and viruses are neutralised inside the air disinfection unit by means of UV-C radiation with a wavelength of 253.7 nm. The disinfected air is 99.99% (LOG4) virus-free when it leaves the unit. By continuously drawing in air, the room air is gradually disinfected and the viral load in the room is reduced.

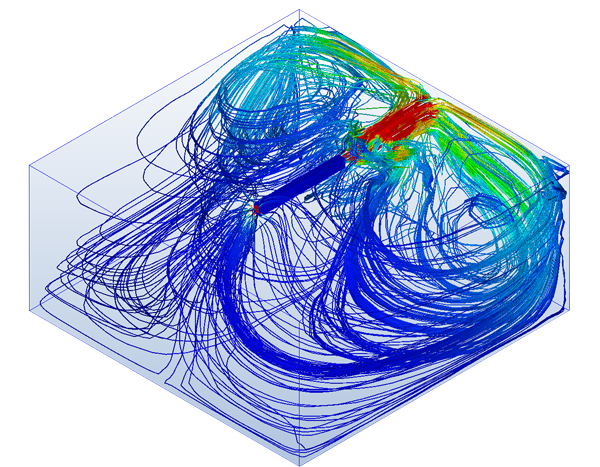

Airflow simulation of the BUENOS AIRES UV-C in a 100 m³ room: By continuously circulating the room air, the disinfected air is distributed throughout the room and the total viral load is continuously reduced.
60 m³ space in 34 minutes
The UV-C lamps used reduce the virus and germ load in the contaminated air by 99.99 % (LOG4). Its air flow rate of 180 m³/hour enables the BUENOS AIRES UV-C air disinfection unit to disinfect the air in a 60 m³ room by as much as 80 % within 34 minutes.
| Room size | Disinfectant rate | Version BUENOS AIRES UV-C 100 m³/h - 20 dB (A) | Version BUENOS AIRES UV-C 180 m³/h - 32 dB(A) |
|---|---|---|---|
| 60 m³ | 80 % | 59 min | 34 min |
| 60 m³ | 90 % | 85 min | 48 min |
| 100 m³ | 80 % | 98 min | 55 min |
| 100 m³ | 90 % | 140 min | 78 min |
The example calculations are based on the assumption that 100% of the room air is contaminated with viruses, etc., at the beginning of the disinfection process and that a continuous dilution of the entire room air takes place.
Disinfection of a 100 m³ room using the BUENOS AIRES UV-C disinfection unit
These example diagrams show the degree of disinfection (%) of the room air achieved by the BUENOS AIRES UV-C unit in a 100 m³ room in minutes. At the beginning of the disinfection process, it is assumed that 100% of the room air is contaminated with viruses.
BUENOS AIRES UV-C 100 m³/h
BUENOS AIRES UV-C 180 m³/h
Extremely quiet thanks to its 20 decibels
The BUENOS AIRES UV-C air disinfection unit runs quietly in the background: with an operating volume of 20 decibels, the ability of people to concentrate – whether in class, in examination situations or in a meeting – is not impaired in any way. With a maximum sound pressure level of 32 decibels, the version with 180 m³/hour air flow rate unobtrusively ensures clean air.
| Versioni BUENOS AIRES UV-C | Sound pressure level | Sound pressure level comparative example |
|---|---|---|
| 100 m³/h | 20 dB (A) | Quiet room |
| 180 m³/h | 32 dB (A) | Typical household
background noise |
Technical Data
BUENOS AIRES UV-C 100 m³/h - 20 dB (A)
| Version | Colour | Article Number | Data Sheet | Operating Instructions |
|---|---|---|---|---|
| Ceiling Mounting | White (RAL 9010) | 997 100 01 02 | Download | Download |
| Ceiling Mounting | Black (RAL 9005) | 997 100 01 03 | Download | Download |
| Version | Colour | Article Number | Data Sheet | Operating Instructions |
|---|---|---|---|---|
| Wall Mounting | White (RAL 9010) | 997 100 02 02 | Download | Download |
| Wall Mounting | Black (RAL 9005) | 997 100 02 03 | Download | Download |
BUENOS AIRES UV-C 180 m³/h - 32 dB (A)
