9721002461

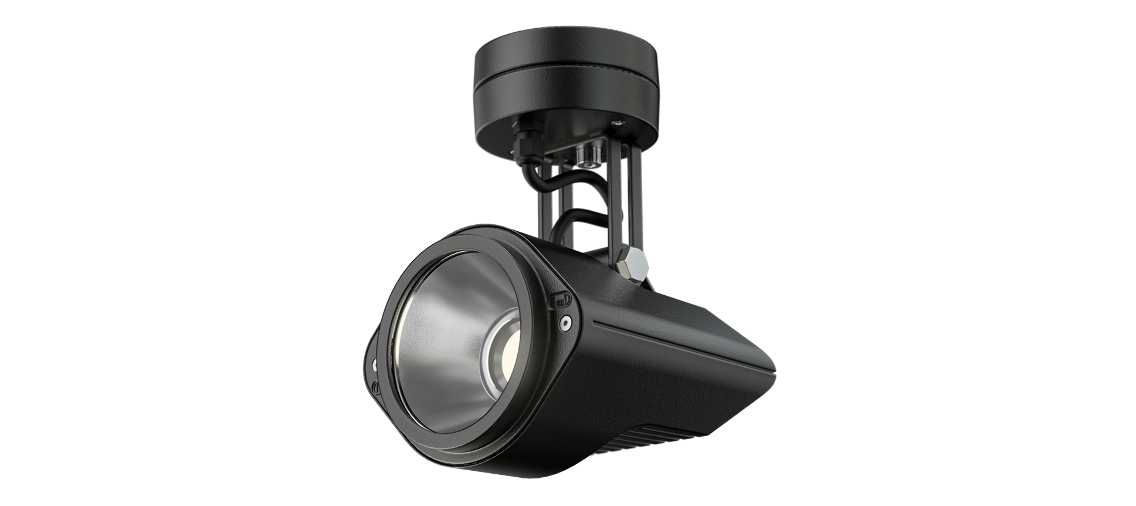

ANTARES LED

1800 lm, 12 W, ESG, clear, narrow beam

9721002461
narrow beam
  • led
  • IP54
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d

Polymer floodlight for ceiling and wall-surface mounting with LED. Useable in industrial facilities, stations for public transport, under canopies and for facade illumination. Luminaire housing made from weather-proof thermoplastic PPO, similar to RAL 9005. Aluminium swivel bracket, coated. Useable for indoor and outdoor areas according to protection rating IP 54. Additional cover frame and cover screen for preventing water accumulation during uplighting optionally available (see accessories). Short sealing system comprised of age-resistant, form-retaining silicone/synthetic rubber. Cover screen made from single-pane safety glass with internal aluminium reflector. Luminaire ready for installation and connection via connection box with protection rating IP 54 and plug-in terminal. Built-in driver, supply voltage 220-240 V AC/DC. 2 kV transient filter. One cable entry M16. Ceiling or wall fixation via two sealed drill holes on the bottom oft the connection box.

Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
1800 lm
LOR
71.3 %
Luminous flux luminaire
1283 lm
max. System power
12 W
Luminaire efficacy
106.95 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +40°C
Ambient temperature
-25°C to +40°C
Type of gear
LED operating device current-controlled,
No dim function, 220 V - 240 V AC/DC
Max. number of luminaires Circuit breaker B16
36
Max. Number of luminaires Circuit breaker C16
60
Through-wiring
without
Housing material
polymer
Colour housing
Anthracite
Material of the cover
ESG, clear
Light distribution
narrow beam
Adjustability
Swivelling
Protection class
II
IP-rating
IP54
Impact strength
IK08
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
single mounting, wall mounting, ceiling mounting, Surface mounting
Energy efficiency class of the light source
E

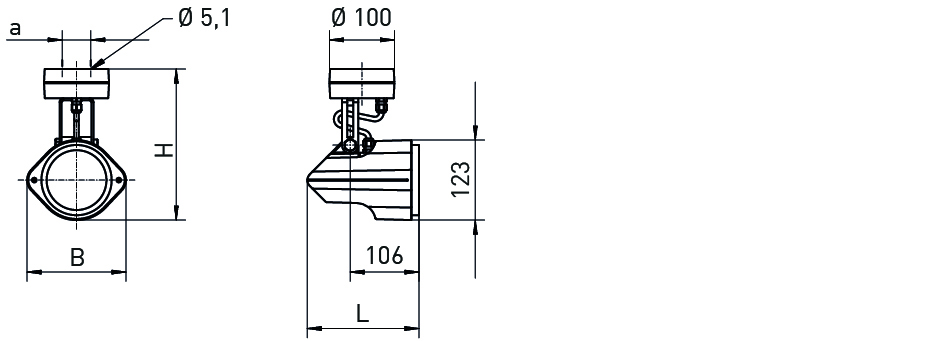

Dimensional Drawing
Length
172 mm
Width
152 mm
Height
232 mm
Mounting dimension a
44 mm
Max. weight
0,9 kg

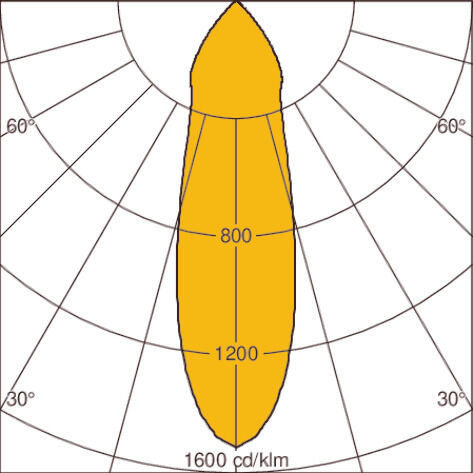

Light distribution curveLOR: 71 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:100502
  • article-number:On request
  • article-number:972960
  • article-number:972970
Accessories

Selected accessories will appear on the datasheet.

Version
  • article-number:970929
