BERN LED

Tubular luminaire (Ø 60 mm) with high IP ratings

Technical Information Article Overview
BERN LED
medium beam
  • led
  • EL_optional
  • IP65
  • IP66
  • IP67
  • IP68_20m
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • IK10_PC
  • IK10_PMMA
  1. Thumbnail Image
  2. Thumbnail Image
Item 1 of 2

Technical Information

AREAS OF APPLICATION
Tubular luminaire with LED lamps. Useable in industrial applications, in work pits used for maintenance and repair work and for decorative indoor and outdoor lighting. Version with high protection rating IP 69K suitable for production facilities and suppliers in the food and beverage industry.

HOUSING

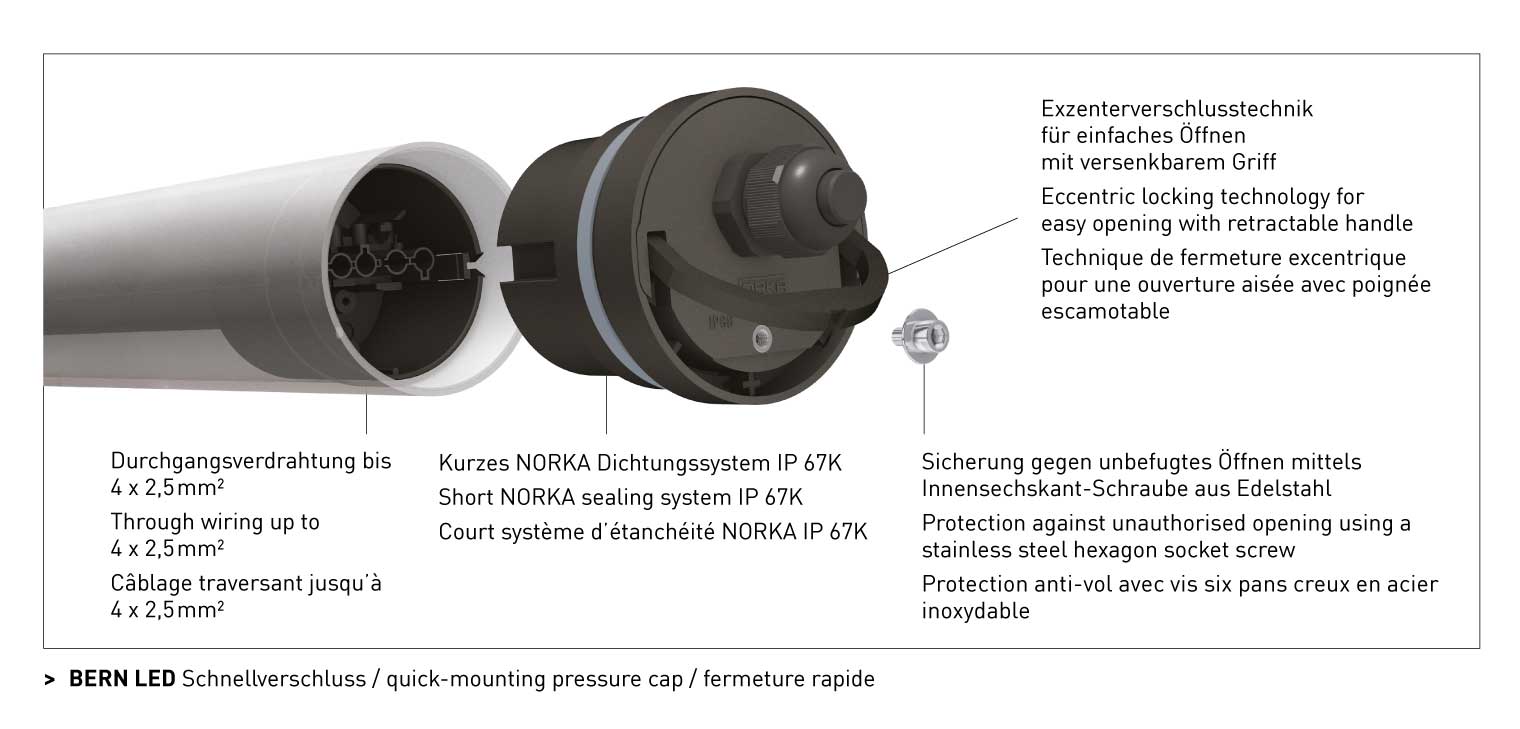

Polymer luminaire tube (Ø 60 mm) with two quick-mounting pressure caps and protection against unauthorised opening. Useable for indoor and outdoor areas according to protection rating IP 65, IP 66 and IP 67. Resistant to pressurised water to 20 m due to protection rating IP 68, 20 m. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K.

LIGHTING TECHNOLOGY
Luminaire tube made of PMMA Transopal® (impact strengthened) or PC Tropal® (fracture proof) with easy eXchange for LED and driver replacement.

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC, optionally suitable for emergency lighting. One cable gland M20 per face side. 4 x 1.5 mm² through wiring. 2 kV transient filter.

MOUNTING
Individual or row mounting. Ceiling or wall fixing using two mounting clamps made of stainless steel/black/transparent polymer. Suspension system possible (see options).

Article Overview

Filter articles

(30 articles)
Item Number
Version
Cover
Light distribution
Luminous flux lamp
System power
Color Temperture
L/W/H (mm)
Temperature
5362803424-F-MC1m600PMMA Transopal® (impact strengthened), protection tubemedium beam1300 lm9 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803424-F-MC3m600PMMA Transopal® (impact strengthened), protection tubemedium beam1710 lm11 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803424-F-MC5m600PMMA Transopal® (impact strengthened), protection tubemedium beam2110 lm13 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803424-F-MC7m600PMMA Transopal® (impact strengthened), protection tubemedium beam2730 lm16 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803424-F-MC9m600PMMA Transopal® (impact strengthened), protection tubemedium beam2930 lm17 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803484-F-MC1m600PC Tropal® (fracture proof), protection tubemedium beam1300 lm9 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803484-F-MC3m600PC Tropal® (fracture proof), protection tubemedium beam1710 lm11 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803484-F-MC5m600PC Tropal® (fracture proof), protection tubemedium beam2110 lm13 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803484-F-MC7m600PC Tropal® (fracture proof), protection tubemedium beam2730 lm16 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5362803484-F-MC9m600PC Tropal® (fracture proof), protection tubemedium beam2930 lm17 W4000 K
750 / 95 / 89
-25 °C bis +40 °C
5364803424-F-MC1m1200PMMA Transopal® (impact strengthened), protection tubemedium beam2600 lm15 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803424-F-MC3m1200PMMA Transopal® (impact strengthened), protection tubemedium beam3420 lm19 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803424-F-MC5m1200PMMA Transopal® (impact strengthened), protection tubemedium beam4640 lm25 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803424-F-MC7m1200PMMA Transopal® (impact strengthened), protection tubemedium beam5860 lm32 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803424-F-MC9m1200PMMA Transopal® (impact strengthened), protection tubemedium beam6270 lm34 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803484-F-MC1m1200PC Tropal® (fracture proof), protection tubemedium beam2600 lm15 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803484-F-MC3m1200PC Tropal® (fracture proof), protection tubemedium beam3420 lm19 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803484-F-MC5m1200PC Tropal® (fracture proof), protection tubemedium beam4640 lm25 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803484-F-MC7m1200PC Tropal® (fracture proof), protection tubemedium beam5860 lm32 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5364803484-F-MC9m1200PC Tropal® (fracture proof), protection tubemedium beam6270 lm34 W4000 K
1310 / 95 / 89
-25 °C bis +40 °C
5366803424-F-MC1m1500PMMA Transopal® (impact strengthened), protection tubemedium beam4270 lm23 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803424-F-MC3m1500PMMA Transopal® (impact strengthened), protection tubemedium beam5280 lm28 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803424-F-MC5m1500PMMA Transopal® (impact strengthened), protection tubemedium beam6300 lm33 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803424-F-MC7m1500PMMA Transopal® (impact strengthened), protection tubemedium beam7320 lm39 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803424-F-MC9m1500PMMA Transopal® (impact strengthened), protection tubemedium beam7830 lm41 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803484-F-MC1m1500PC Tropal® (fracture proof), protection tubemedium beam4270 lm23 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803484-F-MC3m1500PC Tropal® (fracture proof), protection tubemedium beam5280 lm28 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803484-F-MC5m1500PC Tropal® (fracture proof), protection tubemedium beam6300 lm33 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803484-F-MC7m1500PC Tropal® (fracture proof), protection tubemedium beam7320 lm39 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
5366803484-F-MC9m1500PC Tropal® (fracture proof), protection tubemedium beam7830 lm41 W4000 K
1590 / 95 / 89
-25 °C bis +40 °C
