5362803484-F-MC3

BERN LED m600

1710 lm, 11 W, protection tube, PC Tropal® (fracture proof), medium beam

5362803484-F-MC3
FOCUSSED LIGHTING
easy eXchange
additional color temperatures
medium beam
  • led
  • EL_optional
  • IP65
  • IP66
  • IP67
  • IP68_20m
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • IK10_PC

Tubular luminaire with LED lamps. Useable in industrial applications, in work pits used for maintenance and repair work and for decorative indoor and outdoor lighting. Version with high protection rating IP 69K suitable for production facilities and suppliers in the food and beverage industry. Polymer luminaire tube (Ø 60 mm) with two quick-mounting pressure caps and protection against unauthorised opening. Useable for indoor and outdoor areas according to protection rating IP 65, IP 66 and IP 67. Resistant to pressurised water to 20 m due to protection rating IP 68, 20 m. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K. Luminaire tube made of PMMA Transopal® (impact strengthened) or PC Tropal® (fracture proof) with easy eXchange for LED and driver replacement. Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC. One cable gland M20 per face side. 4 x 1.5 mm² through wiring. 2 kV transient filter. Individual or row mounting. Ceiling or wall fixing using two mounting clamps made of stainless steel/black/transparent polymer.

Version
m600
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
1710 lm
LOR
81.1 %
Luminous flux luminaire
1387 lm
max. System power
11 W
Luminaire efficacy
126.1 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +40°C
Ambient temperature
-25°C to +40°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
optional
DC level set at factory
100 %
Transient protection
2 kV
Max. number of luminaires Circuit breaker B16
26
Max. Number of luminaires Circuit breaker C16
43
Through-wiring
4 x 1.5 mm²
Housing material
polymer
Colour housing
Other
Cover
protection tube
Material of the cover
PC Tropal® (fracture proof)
Light distribution
medium beam
Adjustability
Swivelling
UGR Value (4H8H)*
22.6
Protection class
II
IP-rating
IP65, IP66, IP67, IP68 20m, IP69K
Impact strength
IK10
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
wire suspension, cable suspension, ceiling mounting, wall mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
LED tray replaceable by professional
Energy efficiency class of the light source
C
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
750 mm ± 2 mm
Width
95 mm
Height
89 mm
Mounting dimension a
650 mm ± 50 mm
Max. weight
2,5 kg

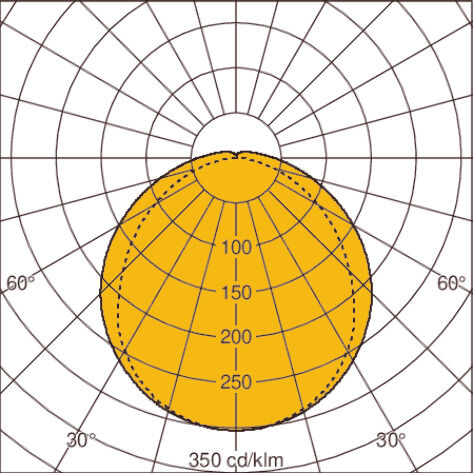

Light distribution curveLOR: 81 %
