6464804424-F-4640lm

BITBURG LED INDUSTRY m1200

4640 lm, 25 W, reflector tube, PMMA Transopal® (impact strengthened), wide beam

6464804424-F-4640lm
FOCUSSED LIGHTING
wide beam
  • led
  • EL_optional
  • IP65
  • IP66
  • IP67
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • IK04_PMMA

Polymer luminaire for surface ceiling and wall-surface mounting for HACCP/IFS applications with LED lamps. Useable in production facilities and suppliers in the food and beverage industry. Long expected service life, useable up to +55 °C. Acid, alkaline and fuel-resistant luminaire housing made of fibreglass-reinforced polymer, similar to RAL 9010. Useable for indoor and outdoor areas according to protection rating IP 65, IP 66 and IP 67. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber. Reflector tube that can be swivelled made of PMMA Transopal® (impact strengthened) or PC Tropal® (fracture proof) with internal aluminium reflector (MIRO-SILVER®). Reflector tube can be locked in increments of 10°. Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC. Two access covers, two cable glands on face side M20. L80 B10 >75,000 h at +55°C. 4 kV transient filter. 8 years manufacturer warranty. Single or row mounting. Ceiling installation using two stainless steel mounting clamps, variable mounting distance. Captive end caps.

Version
m1200
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
4640 lm
LOR
97.5 %
Luminous flux luminaire
4524 lm
max. System power
25 W
Luminaire efficacy
181 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 75,000 h at +55°C
Ambient temperature
-40°C to +55°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
optional
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Max. number of luminaires Circuit breaker B16
22
Max. Number of luminaires Circuit breaker C16
36
Through-wiring
4 x 1.5 mm²
Housing material
polymer
Colour housing
White
Cover
reflector tube
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
wide beam
Adjustability
Swivelling
UGR Value (4H8H)*
23.1
Protection class
II
IP-rating
IP65, IP66, IP67, IP69K
Impact strength
IK04
ENEC
Yes
VDE
Yes
Manufacturer warranty
8 years
Resistance
fuel-resistant, alkali resistant, acid resistant
Installation type
ceiling mounting, wall mounting, row mounting, suspension system
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
Reflector tube replaceable by professional
Energy efficiency class of the light source
C
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1251 mm ± 2 mm
Width
107 mm
Height
140 mm
Mounting dimension a
980 mm ± 80 mm
Max. weight
3,3 kg

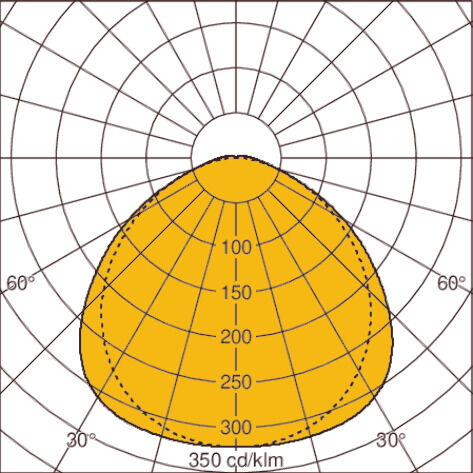

Light distribution curveLOR: 97 %
