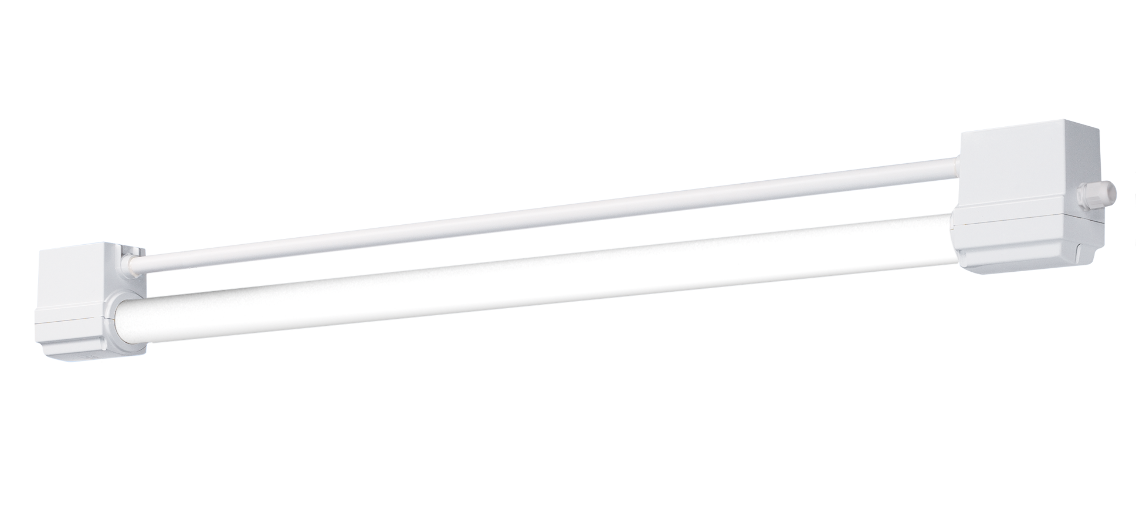

BREMERHAVEN LED m600 HT

1900 lm, 16 W, protection tube, PC Tropal® (fracture proof), wide beam

5962804484
wide beam
  • led
  • IP65
  • IP66
  • IP67
  • IP68_1m
  • ce
  • protection_class_II
  • brandschutz_d
  • IK09_PC

Polymer luminaire with LED lamps. Useable in industrial applications with demanding ambient conditions. Suitable for production facilities and suppliers in the food and beverages industry. Heat-resistant (high temperature (HT)) version suitable for temperatures up to +60 °C, highly heat-resistant (very high-temperature (VHT)) version suitable for temperatures up to +90 °C. Weatherproof luminaire housing made of thermosetting polymer. Useable for indoor and outdoor areas according to protection rating IP 65, IP 66, IP 67 and IP 68, 1 m. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber. Protection tube 38 mm made of PC Tropal® (fracture proof). Luminaire ready for mounting and installation. Two M20 cable glands on face side. Single or row mounting (HT version only). Ceiling installation using two polymer stirrup clamps, variable mounting distance.

Version
m600 HT
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
1900 lm
LOR
95.5 %
Luminous flux luminaire
1814 lm
max. System power
16 W
Luminaire efficacy
113 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B50 > 100,000 h at +60°C
Ambient temperature
-25°C to +60°C
Type of gear
driver Industry,
No dim function, 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
Transient protection
2 kV
Max. number of luminaires Circuit breaker B16
25
Max. Number of luminaires Circuit breaker C16
40
Connection method
cable gland M20
Through-wiring
4 x 1.5 mm²
Terminals
4 pole
Pole identification
L2, L3, N, L1
Housing material
polymer
Colour housing
White
Cover
protection tube
Material of the cover
PC Tropal® (fracture proof)
Light distribution
wide beam
Adjustability
not adjustable
UGR Value (4H8H)*
28.1
Protection class
II
IP-rating
IP66, IP67, IP68 1m, IP65
Impact strength
IK09
Manufacturer warranty
5 years
Installation type
ceiling mounting, Surface mounting, single mounting, wall mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
Protection tube replaceable by professional
Energy efficiency class of the light source
E
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
822 mm ± 2 mm
Width
77 mm
Height
129 mm
Mounting dimension a
395 mm ± 80 mm
Max. weight
2,3 kg
Light distribution curveLOR: 95 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:On request
