BRIG

Slim aluminium profile luminaire

Technical Information Article Overview
BRIG
medium beam
concentrated beam
asymmetric beam
  • led
  • IP65
  • ce
  • protection_class_I
  • brandschutz_d
  • IK03_PMMA

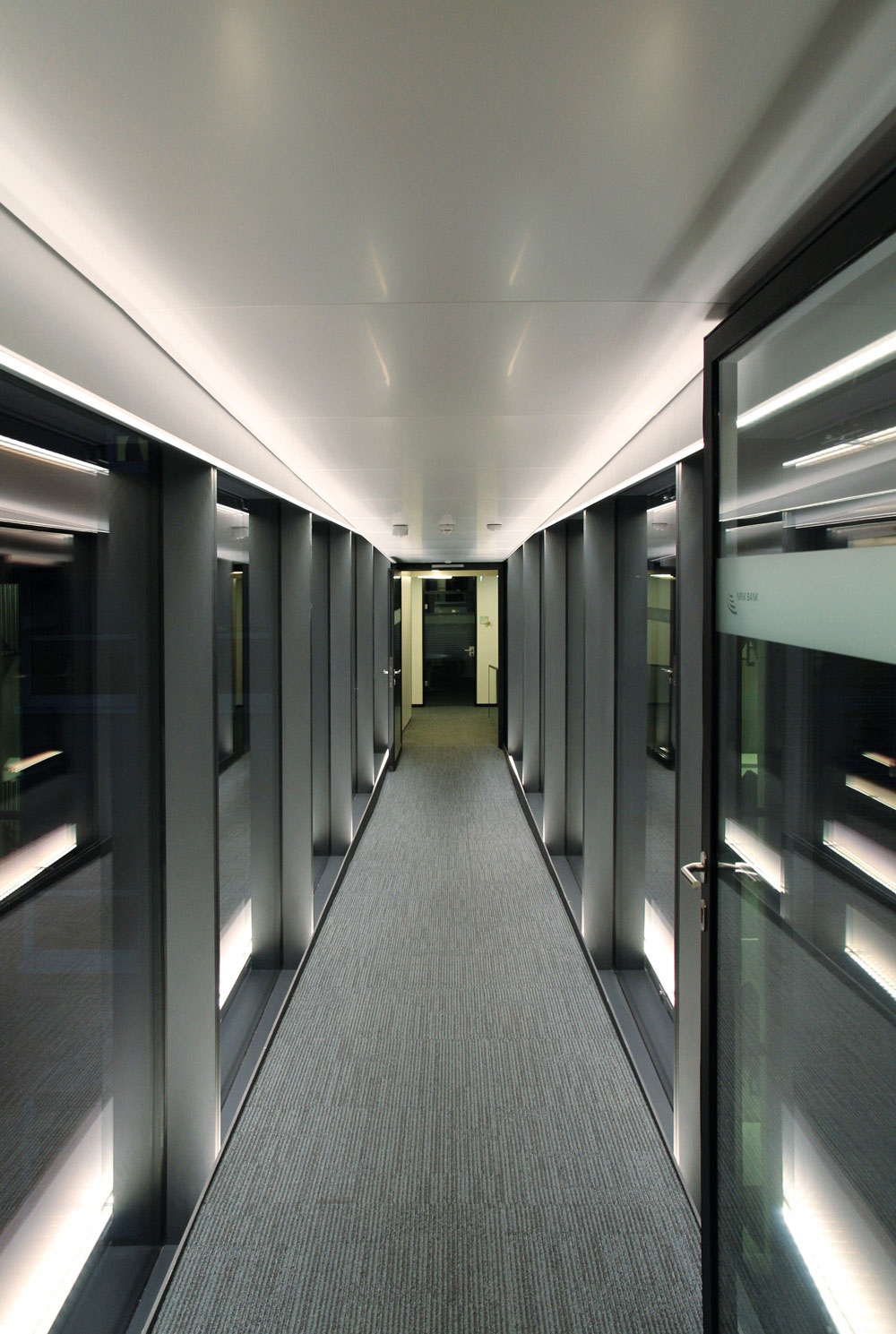

  1. Thumbnail Image

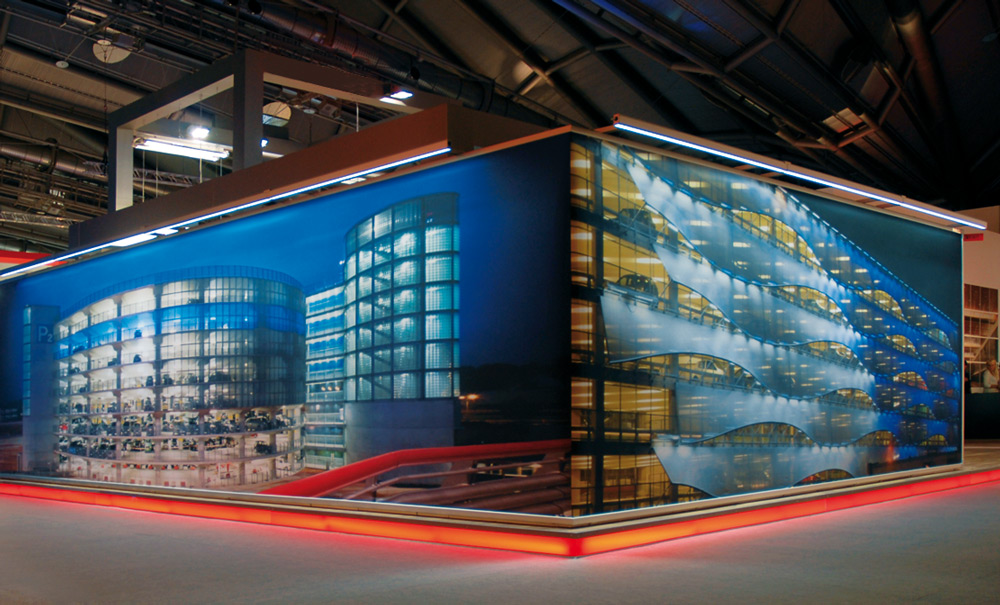

  2. Thumbnail Image
Item 1 of 2

Technical Information

AREAS OF APPLICATION
Aluminium luminaire for ceiling and surface wall mounting with LED stripes. Useable for facade or advertisement illumination and under canopies.

HOUSING
Silver anodised aluminium profile housing. Useable for indoor areas and covered outdoor areas according to protection rating IP 65.

LIGHTING TECHNOLOGY
Cover screen made of PMMA Transopal® (impact strengthened) or PMMA clear.

ELECTRICAL CONSTRUCTION
Luminaire ready for mounting and installation. One cable entry M20 per face side. Built-in driver 230 V AC/DC. 2 kV transient filter with 3 x 1.5 mm² through wiring. Protection class I.

MOUNTING
Single or row mounting. Ceiling mounting with aluminium clamps.

Article Overview

Filter articles

(45 articles)
Item Number
Version
Cover
Light distribution
Luminous flux lamp
System power
Color Temperture
L/W/H (mm)
Temperature
5392803424-F-MC1m600PMMA Transopal® (impact strengthened), lamp covermedium beam1300 lm9 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392803424-F-MC3m600PMMA Transopal® (impact strengthened), lamp covermedium beam1710 lm11 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392803424-F-MC5m600PMMA Transopal® (impact strengthened), lamp covermedium beam2110 lm13 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392803424-F-MC7m600PMMA Transopal® (impact strengthened), lamp covermedium beam2730 lm16 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392803424-F-MC9m600PMMA Transopal® (impact strengthened), lamp covermedium beam2930 lm17 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392806414-F-MC1m600PMMA clear, lamp coverasymmetric beam1300 lm9 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392806414-F-MC3m600PMMA clear, lamp coverasymmetric beam1710 lm11 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392806414-F-MC5m600PMMA clear, lamp coverasymmetric beam2110 lm13 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392806414-F-MC7m600PMMA clear, lamp coverasymmetric beam2730 lm16 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392806414-F-MC9m600PMMA clear, lamp coverasymmetric beam2930 lm17 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392808424-F-MC1m600PMMA Transopal® (impact strengthened), lamp coverconcentrated beam1300 lm9 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392808424-F-MC3m600PMMA Transopal® (impact strengthened), lamp coverconcentrated beam1710 lm11 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392808424-F-MC5m600PMMA Transopal® (impact strengthened), lamp coverconcentrated beam2110 lm13 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392808424-F-MC7m600PMMA Transopal® (impact strengthened), lamp coverconcentrated beam2730 lm16 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5392808424-F-MC9m600PMMA Transopal® (impact strengthened), lamp coverconcentrated beam2930 lm17 W4000 K
600 / 52 / 70
-25 °C bis +40 °C
5394803424-F-MC1m1200PMMA Transopal® (impact strengthened), lamp covermedium beam2600 lm15 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394803424-F-MC3m1200PMMA Transopal® (impact strengthened), lamp covermedium beam3420 lm19 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394803424-F-MC5m1200PMMA Transopal® (impact strengthened), lamp covermedium beam4640 lm25 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394803424-F-MC7m1200PMMA Transopal® (impact strengthened), lamp covermedium beam5860 lm32 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394803424-F-MC9m1200PMMA Transopal® (impact strengthened), lamp covermedium beam6270 lm34 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394806414-F-MC1m1200PMMA clear, lamp coverasymmetric beam2600 lm15 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394806414-F-MC3m1200PMMA clear, lamp coverasymmetric beam3420 lm19 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394806414-F-MC5m1200PMMA clear, lamp coverasymmetric beam4640 lm25 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394806414-F-MC7m1200PMMA clear, lamp coverasymmetric beam5860 lm32 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394806414-F-MC9m1200PMMA clear, lamp coverasymmetric beam6270 lm34 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394808424-F-MC1m1200PMMA Transopal® (impact strengthened), lamp coverconcentrated beam2600 lm15 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394808424-F-MC3m1200PMMA Transopal® (impact strengthened), lamp coverconcentrated beam3420 lm19 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394808424-F-MC5m1200PMMA Transopal® (impact strengthened), lamp coverconcentrated beam4640 lm25 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394808424-F-MC7m1200PMMA Transopal® (impact strengthened), lamp coverconcentrated beam5860 lm32 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5394808424-F-MC9m1200PMMA Transopal® (impact strengthened), lamp coverconcentrated beam6270 lm34 W4000 K
1160 / 52 / 70
-25 °C bis +40 °C
5396803424-F-MC1m1500PMMA Transopal® (impact strengthened), lamp covermedium beam4270 lm23 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396803424-F-MC3m1500PMMA Transopal® (impact strengthened), lamp covermedium beam5280 lm28 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396803424-F-MC5m1500PMMA Transopal® (impact strengthened), lamp covermedium beam6300 lm33 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396803424-F-MC7m1500PMMA Transopal® (impact strengthened), lamp covermedium beam7320 lm39 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396803424-F-MC9m1500PMMA Transopal® (impact strengthened), lamp covermedium beam7830 lm41 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396806414-F-MC1m1500PMMA clear, lamp coverasymmetric beam4270 lm23 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396806414-F-MC3m1500PMMA clear, lamp coverasymmetric beam5280 lm28 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396806414-F-MC5m1500PMMA clear, lamp coverasymmetric beam6300 lm33 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396806414-F-MC7m1500PMMA clear, lamp coverasymmetric beam7320 lm39 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396806414-F-MC9m1500PMMA clear, lamp coverasymmetric beam7830 lm41 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396808424-F-MC1m1500PMMA Transopal® (impact strengthened), lamp coverconcentrated beam4270 lm23 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396808424-F-MC3m1500PMMA Transopal® (impact strengthened), lamp coverconcentrated beam5280 lm28 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396808424-F-MC5m1500PMMA Transopal® (impact strengthened), lamp coverconcentrated beam6300 lm33 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396808424-F-MC7m1500PMMA Transopal® (impact strengthened), lamp coverconcentrated beam7320 lm39 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
5396808424-F-MC9m1500PMMA Transopal® (impact strengthened), lamp coverconcentrated beam7830 lm41 W4000 K
1440 / 52 / 70
-25 °C bis +40 °C
