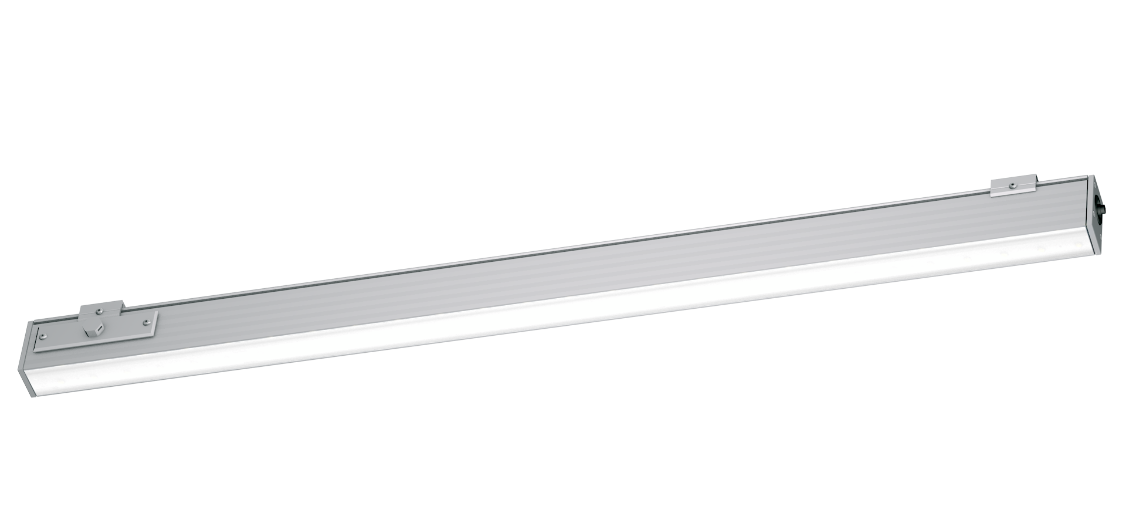

5392808424-F-MC9

BRIG m600

2930 lm, 17 W, lamp cover, PMMA Transopal® (impact strengthened), concentrated beam

5392808424-F-MC9
FOCUSSED LIGHTING
concentrated beam
  • led
  • IP65
  • ce
  • protection_class_I
  • brandschutz_d
  • IK03_PMMA

Aluminium luminaire for ceiling and surface wall mounting with LED stripes. Useable for facade or advertisment illumination and under canopies. Silver anodised aluminium profile housing. Useable for indoor areas and covered outdoor areas according to protection rating IP 65. Cover screen made of PMMA Transopal® (impact strengthened) or PMMA clear. Luminaire ready for mounting and installation. One cable entry M20 per face side. Built-in driver 230 V AC/DC. 2 kV transient filter. Protection class I. Single or row mounting. Ceiling mounting with aluminium clamps.

Version
m600
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
2930 lm
LOR
72.7 %
Luminous flux luminaire
2130 lm
max. System power
17 W
Luminaire efficacy
125.3 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +40°C
Ambient temperature
-25°C to +40°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC, 50/ 60 Hz
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
2 kV
Max. number of luminaires Circuit breaker B16
22
Max. Number of luminaires Circuit breaker C16
36
Connection method
screw clamp
Through-wiring
3 x 1.5 mm²
Housing material
aluminium
Colour housing
Aluminium
Cover
lamp cover
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
concentrated beam
Adjustability
not adjustable
UGR Value (4H8H)*
25
Protection class
I
IP-rating
IP65
Impact strength
IK03
Manufacturer warranty
5 years
Installation type
wire suspension, Surface mounting, ceiling mounting, wall mounting, single mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
LED tray replaceable by professional
Energy efficiency class of the light source
C
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.

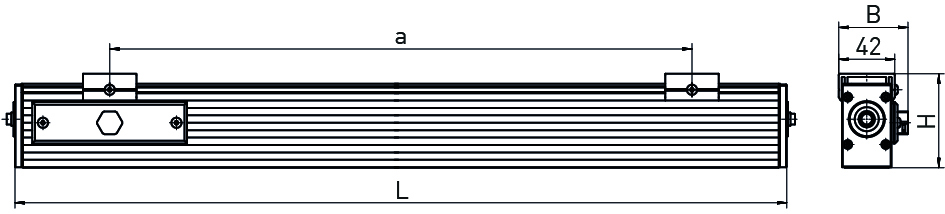

Dimensional Drawing
Length
600 mm ± 2 mm
Width
52 mm
Height
70 mm
Mounting dimension a
458 mm ± 50 mm
Max. weight
1,2 kg

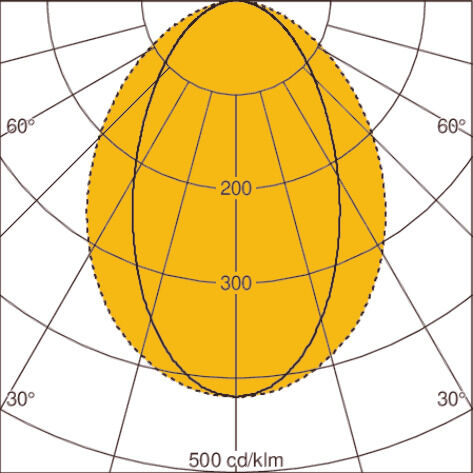

Light distribution curveLOR: 72 %
