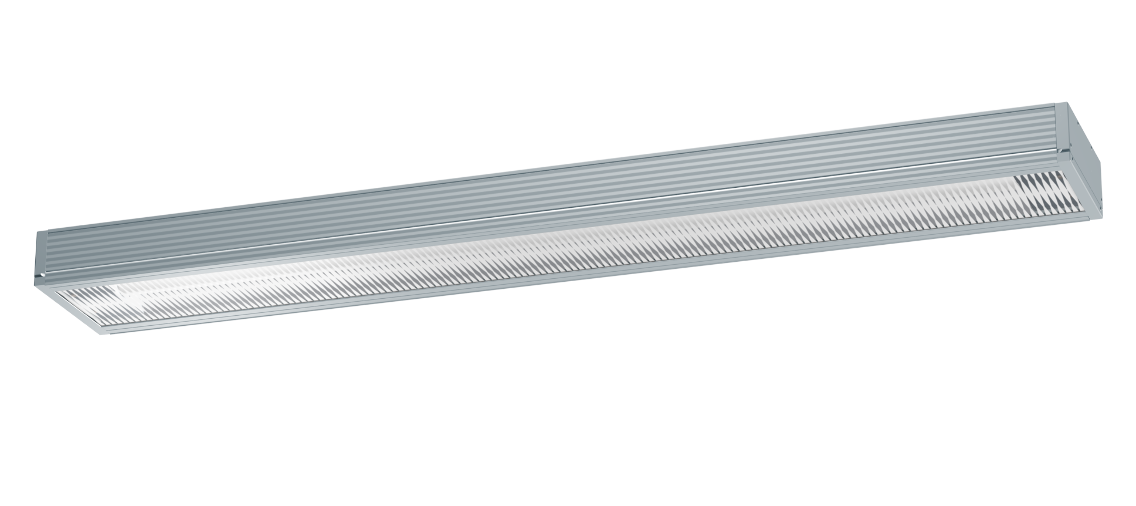

DUBLIN LED m1200

4900 lm, 30 W, lamp cover, PMMA (impact strengthened) clear with decorative screen print pattern, asymmetric beam

5864806434-Z1
easy eXchange
additional color temperatures
asymmetric beam
  • led
  • EL_optional
  • IP65
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • ballwurfsicher_optional
  • IK10_PMMA

Aluminium luminaire for recessed and surface ceiling mounting with LED. Useable in underground stations, pedestrian underpasses and tunnels, passages, multi-storey car parks, swimming pools (see options), sports halls, transport areas and under canopies. Silver anodised aluminium profile housing, similar to RAL 9006. 185 mm profile width with low installed height. Cover screen with tool-free opening. Useable for indoor and outdoor areas according to protection rating IP 65. Sealing system consisting of age-resistant, form-retaining silicone/ synthetic rubber. Protection class II. LED unit for LED and driver replacement (easy eXchange). Cover screen made of PMMA (impact strengthened) or PC (fracture proof) clear with decorative screen print pattern. Internal aluminium reflector (MIRO-SILVER®). LED unit with reverse polarity protected connecting plug. Built-in DALI driver, 230 V AC/DC, optionally suitable for emergency lighting. Through wiring 5 x 1.5 mm² and additional 2 x 1.5 mm² control wiring. Ready for connection via two rear-mounted cable entries. 2 kV transient filter. Single mounting. Optional continuous row version or on NORKA trunking system 185 (the luminaire must be ordered in this specification). Mounting on two concealed mounting apertures at the rear. Ceiling mounting frame optionally available (see accessories).

Version
m1200
Lamp
LED
Number of lamps
1-lamp
CLO (optional)
Yes
Luminous flux lamp
4900 lm
LOR
85.2 %
Luminous flux luminaire
4175 lm
max. System power
30 W
Luminaire efficacy
139.2 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Lamp service life
L80 B10 > 60,000 h at +40°C
Ambient temperature
-25°C to +40°C
Type of gear
LED operating device current-controlled,
DALI (additional 2 x 1.5 mm² control line), 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
optional
DC level set at factory
100 %
Transient protection
2 kV
Connection method
cable membrane M20
Through-wiring
5 x 1.5 mm²
Socket
Other
Housing material
aluminium
Colour housing
Aluminium
Cover
lamp cover
Material of the cover
PMMA (impact strengthened) clear with decorative screen print pattern
Light distribution
asymmetric beam
Adjustability
not adjustable
UGR Value (4H8H)*
27
Protection class
II
IP-rating
IP65
Impact strength
IK10
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Resistance
dustproof, water proof
Installation type
trunking system, recessed mounted, ceiling mounting, single mounting, row mounting, Surface mounting
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1276 mm ± 2 mm
Width
185 mm
Height
73 mm
Mounting dimension a
1000 mm ± 3 mm
Dimension b
1140 mm ± 2 mm
Max. weight
8,9 kg

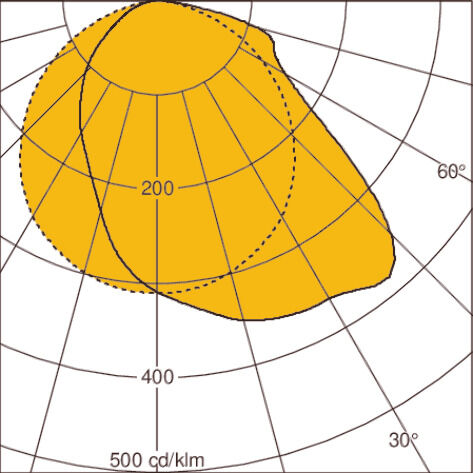

Light distribution curveLOR: 85 %
Options

Selected options will appear on the datasheet.
