4466903429-E

ERFURT LED DB m1500

9360 lm, 56 W, reflector tube, PMMA Transopal® (impact strengthened), medium beam

4466903429-E
XARA ®optional
easy eXchange LED
easy eXchange DRIVER optional
medium beam
  • led
  • EL
  • IP65
  • IP67_optional
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • lucon_optional
  • db_button
  • IK04_PMMA

Polymer luminaire for ceiling and wall mounting with LED lamps, single or twin lamps. Useable in industrial and public applications, such as swimming pools (see options), and areas with special safety requirements. Version suitable for temperatures up to +55 °C. Weather-proof and UV-resistant luminaire housing made of fibreglass-reinforced polymer, similar to RAL 9010. Useable for indoor and outdoor areas according to protection rating IP 65. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/ synthetic rubber. Reflector tube with sealing system for easy LED replacement (easy eXchange LED). With reflector tubes that can be swivelled independently made of PMMA Transopal® (impact strengthened) with internal aluminium reflector (MIRO-SILVER®). Reflector tube can be locked in increments of 10°. L90 B10 > 60,000 h at 25°C. Luminaire ready for mounting and installation. Integrated DALI driver, capable of emergency lighting, with through-wiring 5 x 2.5 mm² and additional 2 x 1.5 mm² control cable. Optimized with additional inrush current limiter (ESSB II), 4 kV transient filter. Two M20 cable glands on face side. Single or row mounting. Ceiling or wall fixing using two stainless steel mounting clamps with variable mounting distance.

HINWEIS
Listed: DB InfraGO Fahrweg - Group 2

Version
m1500
Lamp
LED
Number of lamps
2-lamp
Luminous flux lamp
9360 lm
LOR
97 %
Luminous flux luminaire
9079 lm
max. System power
56 W
Luminaire efficacy
162.12 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L90 B10 > 60,000 h at +55°C
Ambient temperature
-25°C to +55°C
Type of gear
LED operating device current-controlled,
DALI (additional 2 x 1.5 mm² control line), 230 V - 240 V AC/DC, 50/ 60 Hz
EL (Emergency Lighting)
true
DC level set at factory
15 %
Transient protection
4 kV
Inrush Current Limiter
Yes
Max. number of luminaires Circuit breaker B16
20
Max. Number of luminaires Circuit breaker C16
32
Through-wiring
5 x 2.5 mm²
Housing material
polymer
Colour housing
White similar to RAL 9010
Cover
reflector tube
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
medium beam
Adjustability
Swivelling
UGR Value (4H8H)*
19
Protection class
II
IP-rating
IP65
Impact strength
IK04
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Resistance
Impact resistant, acid resistant, alkali resistant, dustproof, corrosion proof
Installation type
cable suspension, Surface mounting, ceiling mounting, wall mounting, single mounting, row mounting, mounting rail, suspension system
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
Reflector tube replaceable by professional
Energy efficiency class of the light source
C
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1551 mm ± 2 mm
Width
242 mm
Height
140 mm
Mounting dimension a
1220 mm ± 80 mm
Max. weight
4,7 kg

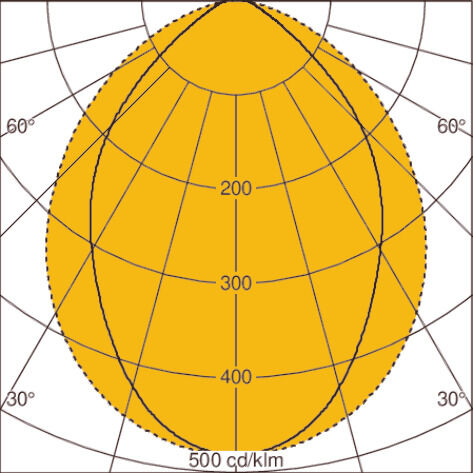

Light distribution curveLOR: 97 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:445010
  • article-number:445400
  • article-number:100111
  • article-number:445960
  • article-number:200951
Accessories

Selected accessories will appear on the datasheet.

Version
  • article-number:200226
  • article-number:200224
  • article-number:200277
