3752803421-Z1

KIEL LED m600

1960 lm, 13 W, reflector tube, PMMA Transopal® (impact strengthened), medium beam

3752803421-Z1
additional color temperatures
medium beam
  • led
  • IP65
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • IK04_PMMA

Polymer luminaire for surface ceiling mounting with LED lamps. Useable in industrial applications, stations for public transport, in underground and suburban railway stations and for facade or advertisment illumination. Weather-proof luminaire housing made of thermosetting polymer, similar to RAL 9010 and RAL 9005. Useable for indoor and outdoor areas according to protection rating IP 65. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber. With protection tube 38 mm or a reflector tube that can be swivelled made of PMMA Transopal® (impact strengthened) or PC Tropal® (fracture proof) with internal aluminium reflector (MIRO-SILVER®). Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC. Two M20 cable entries on face side. L80 B10 > 50,000 h at +40/+45 °C. Single or row mounting. Ceiling installation using two polymer stirrup clamps, variable mounting distance.

Version
m600
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
1960 lm
LOR
97.1 %
Luminous flux luminaire
1903 lm
max. System power
13 W
Luminaire efficacy
146 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 / B10 > 50,000 h at +40°C
Ambient temperature
-25°C to +40°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC
Max. number of luminaires Circuit breaker B16
25
Max. Number of luminaires Circuit breaker C16
40
Connection method
cable membrane M20
Through-wiring
4 x 1.5 mm²
Housing material
polymer
Colour housing
Black
Cover
reflector tube
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
medium beam
Adjustability
Swivelling
UGR Value (4H8H)*
17.4
Protection class
II
IP-rating
IP65
Impact strength
IK04
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
Surface mounting, ceiling mounting, single mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
Reflector tube replaceable by professional
Energy efficiency class of the light source
C
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
638 mm ± 2 mm
Width
107 mm
Height
151 mm
Mounting dimension a
90 mm ± 30 mm
Max. weight
2,3 kg

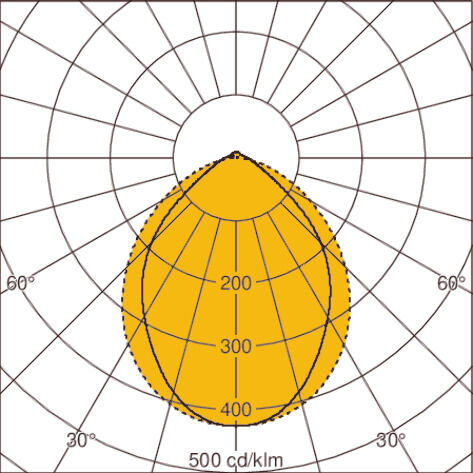

Light distribution curveLOR: 97 %
