LONDON LED

AREAS OF APPLICATION
Aluminium luminaire for recessed and surface ceiling mounting with LED lamps. Useable in underground stations, pedestrian underpasses and tunnels, passages, swimming pools (see options), sports halls, transport areas and under canopies.

HOUSING
Silver anodised aluminium profile housing, similar to RAL 9006. 285 mm profile width with low installed height. Cover screen with tool-free opening. Useable for indoor and outdoor areas according to protection rating IP 65. Sealing system consisting of age-resistant, form-retaining silicone/ synthetic rubber. Protection class II.

LIGHTING TECHNOLOGY

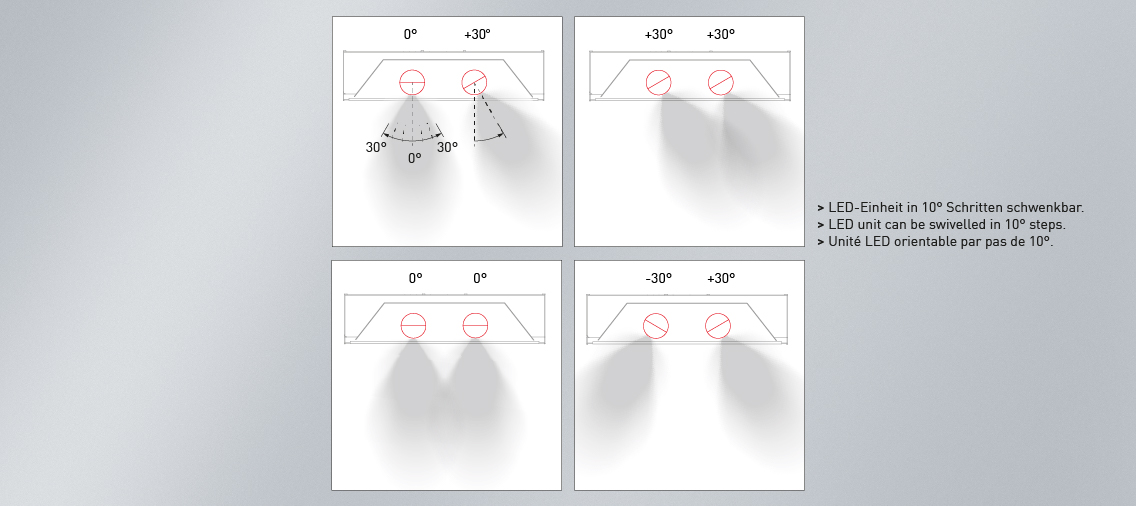

LED unit for LED and driver replacement (easy eXchange). Cover screen made of PMMA (impact strengthened) or PC (fracture proof), clear with decorative screen print pattern. Internal aluminium reflector (MIRO-SILVER^®).

ELECTRICAL CONSTRUCTION
LED units with reverse polarity protected connection plugs. Built-in DALI driver 230 V AC/ DC, optionally suitable for emergency lighting. Through wiring 5 x 1.5 mm² and additional 2 x 1.5 mm² control wiring. Ready for connection via two rear-mounted cable entries. 2 kV transient filter.

MOUNTING
Single mounting. Optional continuous row version or on NORKA trunking system 285 (the luminaire must be ordered in this specification). Mounting on four concealed mounting apertures at the rear. Ceiling mounting frame optionally available (see accessories).
