6196806454-Z1

LONDON LED m1500

12240 lm, 75 W, lamp cover, PC (fracture proof) clear with decorative screen print pattern, asymmetric beam

6196806454-Z1
easy eXchange
additional color temperatures
asymmetric beam
  • led
  • EL_optional
  • IP65
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • ballwurfsicher_optional
  • IK10_PC

Aluminium luminaire for recessed and surface ceiling mounting with LED lamps. Useable in underground stations, pedestrian underpasses and tunnels, passages, swimming pools (see options), sports halls, transport areas and under canopies. Silver anodised aluminium profile housing, similar to RAL 9006. 285 mm profile width with low installed height. Cover screen with tool-free opening. Useable for indoor and outdoor areas according to protection rating IP 65. Sealing system consisting of age-resistant, form-retaining silicone/ synthetic rubber. Protection class II. LED unit for LED and driver replacement (easy eXchange). Cover screen made of PMMA (impact strengthened) or PC (fracture proof), clear with decorative screen print pattern. Internal aluminium reflector (MIRO-SILVER®). LED units with reverse polarity protected connection plugs. Built-in DALI driver 230 V AC/ DC, optionally suitable for emergency lighting. Through wiring 5 x 1.5 mm² and additional 2 x 1.5 mm² control wiring. Ready for connection via two rear-mounted cable entries. 2 kV transient filter. Single mounting. Optional continuous row version or on NORKA trunking system 285 (the luminaire must be ordered in this specification). Mounting on four concealed mounting apertures at the rear. Ceiling mounting frame optionally available (see accessories).

Version
m1500
Lamp
LED
Number of lamps
1-lamp
CLO (optional)
Yes
Luminous flux lamp
12240 lm
LOR
87.2 %
Luminous flux luminaire
10673 lm
max. System power
75 W
Luminaire efficacy
142.3 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +40°C
Ambient temperature
-25°C to +40°C
Type of gear
LED operating device current-controlled,
DALI (additional 2 x 1.5 mm² control line), 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
optional
DC level set at factory
100 %
Transient protection
2 kV
Max. number of luminaires Circuit breaker B16
13
Max. Number of luminaires Circuit breaker C16
21
Connection method
cable membrane M20
Through-wiring
5 x 1.5 mm²
Housing material
aluminium
Colour housing
Aluminium
Cover
lamp cover
Material of the cover
PC (fracture proof) clear with decorative screen print pattern
Light distribution
asymmetric beam
Adjustability
Swivelling
UGR Value (4H8H)*
26.6
Protection class
II
IP-rating
IP65
Impact strength
IK10
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Resistance
dustproof, water proof
Installation type
trunking system, recessed mounted, Surface mounting, recessed mounting, ceiling mounting, single mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
LED tray replaceable by professional
Energy efficiency class of the light source
C
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1576 mm ± 2 mm
Width
285 mm
Height
73 mm
Mounting dimension a
1300 mm ± 3 mm
Dimension b
1440 mm ± 2 mm
Max. weight
13,9 kg

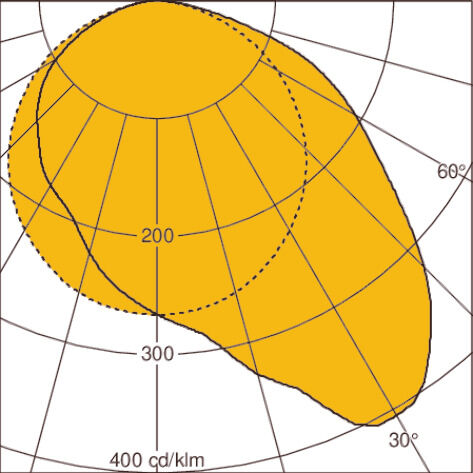

Light distribution curveLOR: 87 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:100530
  • article-number:100901
  • article-number:610010
  • article-number:On request
  • article-number:On request
  • article-number:100922
  • article-number:610003
  • article-number:686036
  • article-number:610103
  • article-number:On request
  • article-number:201442
Accessories

Selected accessories will appear on the datasheet.

Version
  • article-number:203195
  • article-number:203198
  • article-number:203192
