LUTTEROTH LED DB m1200

3600 lm, 20 W, lamp cover, PC (fracture proof) clear-structered, medium beam

7294903492-F-SG01New
medium beam
  • led
  • EL
  • IP65
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • rauer_betrieb
  • db_button
  • IK11+_PC

Extremely impact-resistant surfacemounted luminaire with LED. Vandalism-proof up to 150 joules. Useable in all areas at risk of deliberate or negligent destruction. Stainless steel installation housing, white colour finish on inside and outside, like RAL 9010. Useable for indoor and outdoor areas according to protection rating IP 65. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K. Short sealing system made of age resistant, form retaining silicone/synthetic rubber. Flat cover screen made from PC opal white (fracture proof) or PC clear (fracture proof) structured. Luminaire ready for mounting and installation. Built-in driver, suitable for emergency lighting. Two access covers, cable entries on face side (M20), 5 x 2.5 mm² through wiring and DALI (additional 2 x 1.5 mm² control line, D1/D2). Optimised with additional inrush current limiter (ESSB II). 4 kV transient filter. Single or row mounting. Fixing with four rear bores, flush on the rear recess wall. Fixing of the luminaire cover with stainless steel sealing screws with hexagon sockets.

NOTE DB (Deutsche Bahn) version:
Listed: DB InfraGO Personenbahnhöfe – Group 30.

Version
m1200
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
3600 lm
LOR
71.3 %
Luminous flux luminaire
2566 lm
max. System power
20 W
Luminaire efficacy
128.3 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +45°C
Ambient temperature
-25°C to +45°C
Type of gear
Electronic transformer,
DALI (additional 2 x 1.5 mm² control line), 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
true
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Inrush Current Limiter
Yes
Max. number of luminaires Circuit breaker B16
30
Max. Number of luminaires Circuit breaker C16
60
Through-wiring
4 x 1.5 mm²
Housing material
stainless steel
Colour housing
White
Cover
lamp cover
Material of the cover
PC (fracture proof) clear-structered
Light distribution
medium beam
Adjustability
not adjustable
UGR Value (4H8H)*
17.1
Protection class
II
IP-rating
IP65, IP69K
Impact strength
IK11+
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
recessed mounted, recessed mounting, single mounting, wall installation
Energy efficiency class of the light source
D
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1360 mm ± 2 mm
Width
240 mm
Height
112 mm
Mounting dimension a
1065 mm
Dimension b
120 mm
Max. weight
7,9 kg

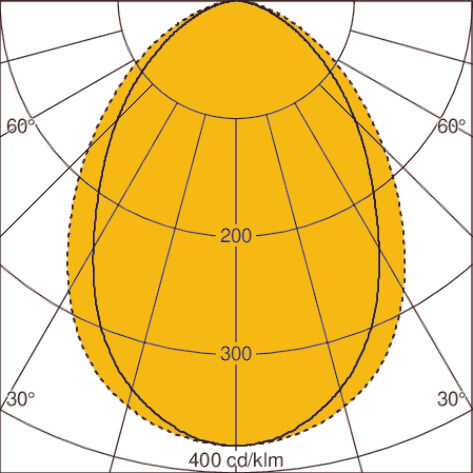

Light distribution curveLOR: 71 %
Options

Selected options will appear on the datasheet.

Version
  • Item Number:729010
  • Item Number:100502
  • Item Number:On request
  • Item Number:700004
  • Item Number:729392
  • Item Number:On request
Accessories

Selected accessories will appear on the datasheet.

Version
  • Item Number:734009
