5384803434-F-MC5

LUZERN 38 LED m1200

4640 lm, 25 W, PC Tropal® (fracture proof), medium beam

5384803434-F-MC5
FOCUSSED LIGHTING
additional color temperatures
medium beam
  • led
  • nfc_optional
  • IP65
  • IP66
  • IP67
  • IP68_1m
  • ce
  • protection_class_II
  • brandschutz_d
  • IK09_PC

Tubular luminaire with LED lamps. Useable in industrial applications, multi-storey car parks, for facade or advertisment illumination and for decorative indoor and outdoor lighting. Polymer luminaire tube (Ø 38 mm). End caps white. Useable for indoor and outdoor areas according to protection rating IP 65, IP 66 and IP 67. Resistant to pressurised water to 1 m due to protection rating IP 68, 1 m. Luminaire tube made of PMMA Transopal® (impact strengthened) or PC Tropal® (fracture proof). Luminaire ready for mounting and installation. One cable gland M16 on face side. Built-in driver 230 V AC/DC. 2 kV transient filter and 2 x 1.5 mm² 2 m connecting cable without plug. Protection class II. Adjustable luminous flux via NFC programming (optionally available). Single mounting. Ceiling or wall fixing using two stainless steel/transparent polymer mounting clamps, variable mounting distance or pendant suspension (see options).

Version
m1200
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
4640 lm
LOR
94.7 %
Luminous flux luminaire
4394 lm
max. System power
25 W
Luminaire efficacy
175.8 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +35°C
Ambient temperature
-25°C to +35°C
Type of gear
LED operating device current-controlled,
230 V - 240 V AC/DC, 0/ 50/ 60 Hz
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
2 kV
Max. number of luminaires Circuit breaker B16
20
Max. Number of luminaires Circuit breaker C16
33
Connection method
Connecting wire (2 m) 2 x 1.5 mm²
Through-wiring
without
Terminals
2 pole
Housing material
polymer
Colour housing
Other
Material of the cover
PC Tropal® (fracture proof)
Light distribution
medium beam
Adjustability
Swivelling
UGR Value (4H8H)*
24.7
Protection class
II
IP-rating
IP65, IP66, IP67, IP68 1m
Impact strength
IK09
Manufacturer warranty
5 years
Installation type
wire suspension, ceiling mounting, wall mounting
Energy efficiency class of the light source
C
NFC-enabled
optional
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1250 mm ± 2 mm
Width
50 mm
Height
57 mm
Mounting dimension a
1160 mm -10 mm
Max. weight
0,9 kg

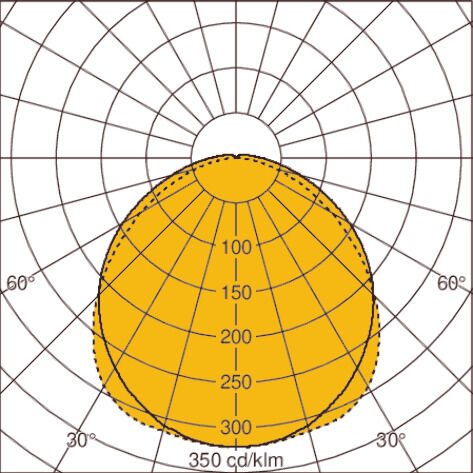

Light distribution curveLOR: 94 %
