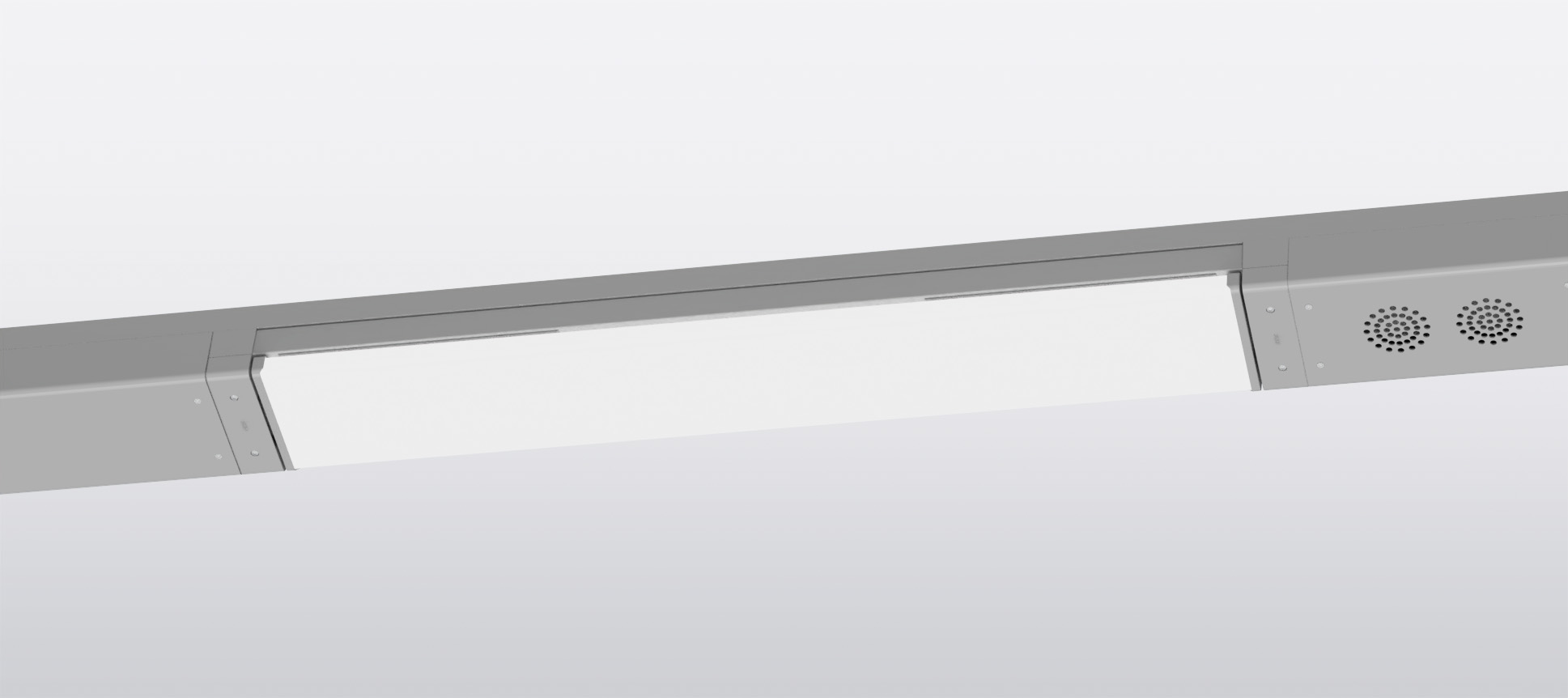

MEDIENKANAL 191

AREAS OF APPLICATION
Trunking system with a module width of 191 mm. Mounting accessories for the MÜNCHEN LED luminaires. Useable in underground and suburban railway stations, pedestrian underpasses and tunnels, passages, swimming pools, transport areas and under canopies.

HOUSING
Anodised silver extruded aluminium profile in customisable lengths with two subdivided cable ducts or the separate laying of cables for various applications and equipment. Cables and wires are fixed using the four enclosed cable holders in the installation grooves, depending on the standard length.

MOUNTING
Row mounting. Ceiling installation via rear fixing points, spacing depending on the mounting situation (on site). Suspension system possible (on site).
Weight version 40 mm height: 2.5 kg/ m.
