NORKA

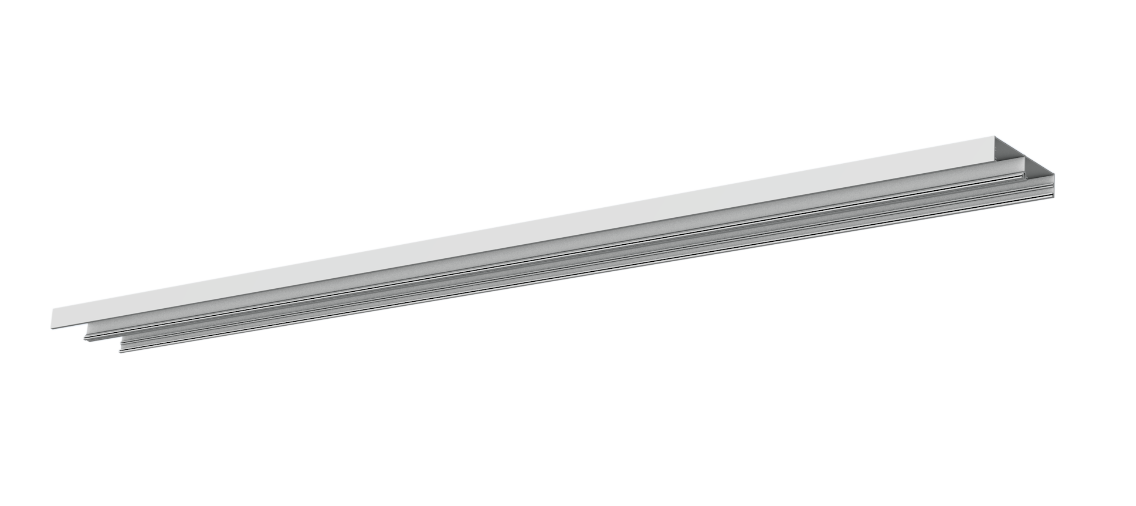

Trunking system with a module width of 191 mm. Mounting accessories for the MÜNCHEN LED luminaires. Useable in underground and suburban railway stations, pedestrian underpasses and tunnels, passages, swimming pools, transport areas and under canopies. Anodised silver extruded aluminium profile in customisable lengths with two subdivided cable ducts or the separate laying of cables for various applications and equipment. Cables and wires are fixed using the four enclosed cable holders in the installation grooves, depending on the standard length. Row mounting. Ceiling installation via rear fixing points, spacing depending on the mounting situation (on site).
Weight version 40 mm height: 2.5 kg/ m.
Price per meter or part thereof.

Version

Height 40 mm

Housing material

Aluminium

Colour housing

Aluminium

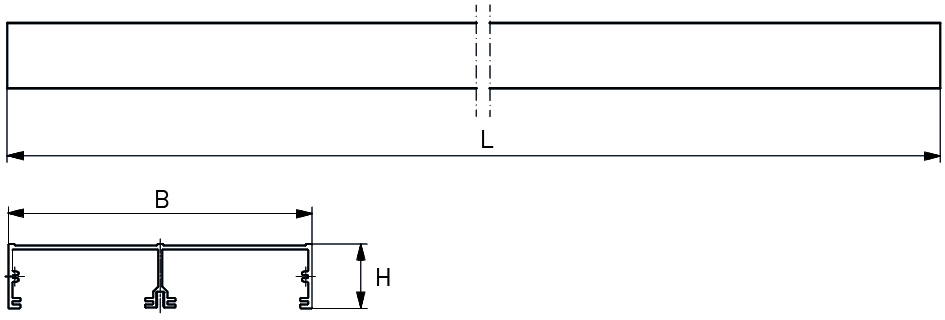

Length

1000 mm

Width

191 mm

Height

40 mm

Max. weight

2,5 kg

Options

Selected options will appear on the datasheet.

Version

Item Number

Coating to RAL
article-number:On request

Accessories

Selected accessories will appear on the datasheet.

Version

Item Number

Additional cable holder for trunking System 191, aluminium
article-number:466105
Blind cover for trunking system 191, aluminium, height 80 mm, with fixing, pre-cut (max. 2.0 m), per metre or part thereof
article-number:466114
Speaker housing for trunking system 191
article-number:466101
Threaded eyebolts M8 × 30, galvanised steel, for on-site suspension system 1m, made of polymer
article-number:200458

Data Sheet Mounting Instructions

MEDIENKANAL 191 Height 40 mm
