7434806492

PHALANX LINEAR 115 m1200

5330 lm, 38 W, lamp cover, PC (fracture proof) clear-structered, asymmetric beam

7434806492
asymmetric beam
  • led
  • EL_optional
  • IP44
  • IP65
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • rauer_betrieb
  • IK11+_PC

Extremely impact-resistant surface mounted ceiling luminaire with LED lamps. Vandalism-proof up to 150 joules. Useable in prisons, detention cells and all areas at risk of deliberate or negligent destruction. Luminaire housing made of metal, powder-coated similar to RAL 7016, protection rating IP 44, with integrated polymer luminaire. Useable for indoor and outdoor areas according to protection rating IP 65. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber. Rectangular, 4 mm thick lamp diffuser made of PC (fracture proof) opal white or PC (fracture proof) clear structured. Luminaire ready for mounting and installation. Built-in driver, 230 V AC/DC. Luminaire housing with two face-side cable entries M20, recessed luminaire with two access covers. 4 x 1.5 mm² through wiring. 4 kV transient filter. L80 B10 > 100,000 h at +40 °C. Retains operation in case of vandalism. 8 years warranty. Single or row mounting. Ceiling or wall fixing with four concealed mounting apertures on the rear. Luminaire cover fixing with two stainless steel sealing screws with hexagon sockets.

Version
m1200
Lamp
LED
Number of lamps
1-lamp
CLO (optional)
Yes
Luminous flux lamp
5330 lm
LOR
85.1 %
Luminous flux luminaire
4540 lm
max. System power
38 W
Luminaire efficacy
119 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 100,000 h at +40°C
Ambient temperature
-40°C to +40°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC
EL (Emergency Lighting)
optional
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Max. number of luminaires Circuit breaker B16
22
Max. Number of luminaires Circuit breaker C16
36
Through-wiring
4 x 1.5 mm²
Housing material
Steel
Colour housing
Anthracite similar to RAL 7016
Cover
lamp cover
Material of the cover
PC (fracture proof) clear-structered
Light distribution
asymmetric beam
Adjustability
not adjustable
UGR Value (4H8H)*
27.5
Protection class
II
IP-rating
IP65, IP44, IP69K
Impact strength
IK11+
ENEC
Yes
VDE
Yes
Manufacturer warranty
8 years
Installation type
ceiling mounting, Surface mounting, single mounting, wall mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
Protection tube replaceable by professional
Energy efficiency class of the light source
E
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1340 mm ± 2 mm
Width
115 mm
Height
130 mm
Mounting dimension a
1290 mm ± 2 mm
Dimension b
80 mm ± 2 mm
Max. weight
8,2 kg

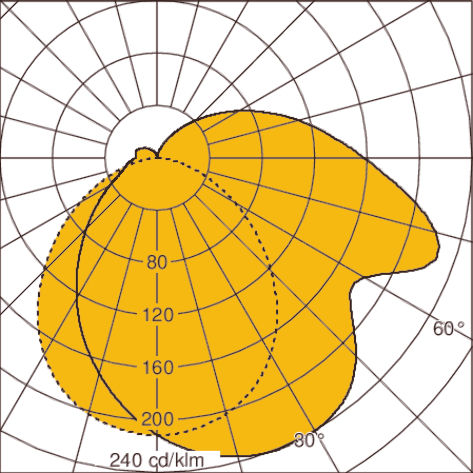

Light distribution curveLOR: 85 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:On request
  • article-number:On request
  • article-number:743010
  • article-number:100502
  • article-number:On request
  • article-number:On request
  • article-number:743007
  • article-number:100922
  • article-number:On request
  • article-number:700003
  • article-number:700001
  • article-number:700002
  • article-number:743822
  • article-number:743832
  • article-number:743392
  • article-number:743100
  • article-number:On request
Accessories

Selected accessories will appear on the datasheet.

Version
  • article-number:717008
  • article-number:734007
  • article-number:734008
