PHALANX LINEAR 240 m1200

5330 lm, 38 W, lamp cover, PC (fracture proof) clear-structered, asymmetric beam

7294806492
XARA ®optional
asymmetric beam
  • led
  • EL_optional
  • IP65
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • rauer_betrieb
  • IK11+_PC

Extremely impact-resistant luminaire for wall and ceiling surface mounting with LED lamps. Vandalism-proof up to 150 joules. Useable in all areas at risk of deliberate or negligent destruction. Metal installation housing, powder-coated inside and outside, similar to RAL 7016. With integrated polymer luminaire. Useable for indoor and outdoor areas according to protection rating IP 65. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K. Short sealing system consisting of age-resistant, form retaining silicone/synthetic rubber. Flat, 3 mm thick cover screen made of PC (fracture proof), clear/structured or PC (fracture proof) opal white. Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC. Luminaire housing with six face-side cable entries M20, recessed luminaire with two access covers. 4 x 1.5 mm² through wiring. 4 kV transient filter. L80 B10 > 100,000 h at +40 °C. Retains functionality in case of vandalism. 8 years warranty. Single or row mounting. Fixing with four rear bores, flush on the rear recess wall. Fixing of the luminaire cover with stainless steel sealing screws with hexagon sockets.

Version
m1200
Lamp
LED
Number of lamps
1-lamp
CLO (optional)
Yes
Luminous flux lamp
5330 lm
LOR
71.4 %
Luminous flux luminaire
3810 lm
max. System power
38 W
Luminaire efficacy
100 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 100,000 h at +40°C
Ambient temperature
-40°C to +40°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC
EL (Emergency Lighting)
optional
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Max. number of luminaires Circuit breaker B16
22
Max. Number of luminaires Circuit breaker C16
36
Through-wiring
4 x 1.5 mm²
Housing material
Steel
Colour housing
Anthracite similar to RAL 7016
Cover
lamp cover
Material of the cover
PC (fracture proof) clear-structered
Light distribution
asymmetric beam
Adjustability
not adjustable
UGR Value (4H8H)*
24.7
Protection class
II
IP-rating
IP65, IP69K
Impact strength
IK11+
ENEC
Yes
VDE
Yes
Manufacturer warranty
8 years
Installation type
recessed mounted, recessed mounting, single mounting, wall installation
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
Reflector tube replaceable by professional
Energy efficiency class of the light source
E
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1360 mm ± 2 mm
Width
240 mm
Height
112 mm
Mounting dimension a
1065 mm
Dimension b
120 mm
Max. weight
7,9 kg

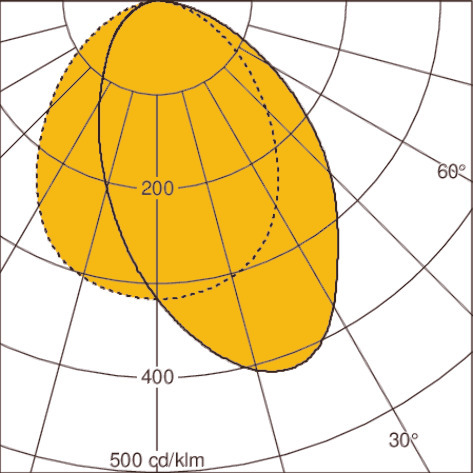

Light distribution curveLOR: 71 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:On request
  • article-number:729010
  • article-number:100502
  • article-number:On request
  • article-number:On request
  • article-number:729007
  • article-number:100922
  • article-number:700004
  • article-number:729822
  • article-number:729832
  • article-number:729392
  • article-number:729100
  • article-number:On request
Accessories

Selected accessories will appear on the datasheet.

Version
  • article-number:734009
