PRAG LED DB m1200

LDP-Prism screen, 4040 lm, 29 W, PC (fracture proof) clear, medium beam

4764903443-SG1
medium beam
  • led
  • EL
  • IP65
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • db_button
  • IK08_PC

Polymer luminaire for ceiling surface-mounting with LED lamps. Useable in e.g. underground and metro stations, passages and multi-storey car parks, can be integrated into profile systems. Weather-proof and UV-resistant luminaire housing made of fibreglass-reinforced polymer, like RAL 9010. For indoor and outdoor areas according to protection rating IP65. Thermally separated lamp chamber and driver chamber. Short sealing system consisting of age-resistant, form-retaining silicone/synthetic rubber. Optimum colour rendering of red tones by special LED modules with an increased R9 value (> 77). Lamp diffuser made of PC Tropal® (fracture proof) with inner aluminium reflector (MIRO-SILVER®) and diffuser for glare reduction. Luminaire ready for mounting and installation. Two face side cable membranes M20 and 4 x 1,5 mm² through wiring. DB (Deutsche Bahn) version: Built-in driver with secondary safety extra low voltage according to DIN VDE 0100-410 (SELV). Optimised with additional inrush current limiter (ESSB II). 4 kV transient filter. Single or row mounting. Ceiling fixing using two stainless steel mounting clips, variable mounting distance.
NOTE DB (Deutsche Bahn) version:
Listed: DB InfraGO Personenbahnhöfe – Group 20.

Version
m1200
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
4040 lm
LOR
77.4 %
Luminous flux luminaire
3127 lm
max. System power
29 W
Luminaire efficacy
107.82 lm/W
Colour temperature
White, 940/4000 K, Ra > 90
R9 red saturated > 46
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +45°C
Ambient temperature
-25°C to +45°C
Type of gear
LED operating device current-controlled,
220 V - 240 V AC/DC
EL (Emergency Lighting)
true
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Inrush Current Limiter
Yes
Max. number of luminaires Circuit breaker B16
35
Max. Number of luminaires Circuit breaker C16
60
Through-wiring
4 x 1.5 mm²
Housing material
polymer
Colour housing
White
Material of the cover
PC (fracture proof) clear
Light distribution
medium beam
Additional screen
LDP-Prism screen
Adjustability
not adjustable
UGR Value (4H8H)*
18.9
Protection class
II
IP-rating
IP65
Impact strength
IK08
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Installation type
Surface mounting, ceiling mounting, single mounting, row mounting, suspension system
Energy efficiency class of the light source
D
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1280 mm ± 2 mm
Width
191 mm
Height
138 mm
Mounting dimension a
980 mm ± 80 mm
Max. weight
3,8 kg

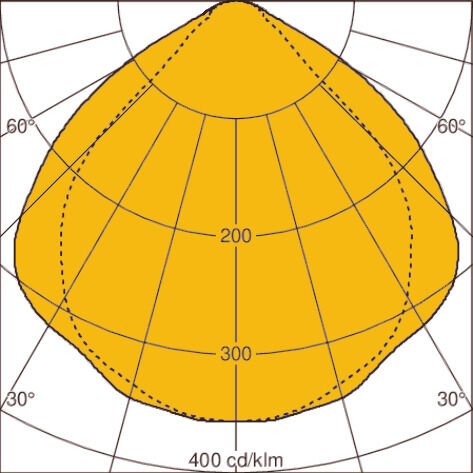

Light distribution curveLOR: 77 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:476010
  • article-number:100502
  • article-number:476960
  • article-number:476834
  • article-number:On request
