421613-F

SCHÖNEFELD picture 3

320 lm, 6 W, PC (fracture proof) opal white, wide beam, 1 h

421613-F
wide beam
  • led
  • EL
  • IP65
  • ce
  • protection_class_II
  • brandschutz_d
  • IK08_PC

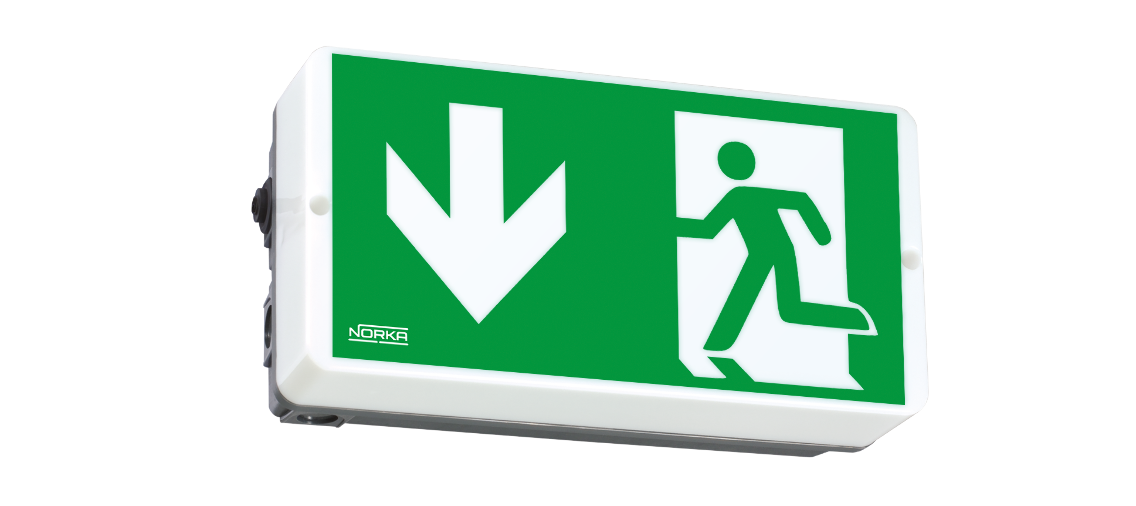

Single-battery escape route luminaire with LED lamps. Viewing distance 28 m. Weather-proof and UV-resistant luminaire housing made of polymer, anthracite. Useable for indoor and outdoor areas according to protection rating IP 65. Sealing system made of age-resistant, form-retaining silicone/synthetic rubber. Hinged lamp diffuser made of PC (fracture proof) opal or with pictogram according to EN ISO 7010 for safety luminaires. Luminaire ready for mounting and installation. One M20 lateral cable entry. Emergency operation through integrated emergency lighting unit, including automatic self-test, charging, indicator, mains monitoring and protection against total discharge. Emergency lighting duration 1 h or 3 h. Single mounting. Wall fixing through two sealed openings in the luminaire base.

Version
picture 3
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
320 lm
LOR
86.8 %
Luminous flux luminaire
278 lm
max. System power
6 W
Colour temperature
840/4000 K, Ra > 80
Lamp service life
L80 B10 > 60,000 h at +30°C
Ambient temperature
-5°C to +30°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC
EL (Emergency Lighting)
true
Max. number of luminaires Circuit breaker B16
13
Max. Number of luminaires Circuit breaker C16
26
Through-wiring
without
Terminals
2 pole
Housing material
Plastic
Colour housing
Anthracite
Material of the cover
PC (fracture proof) opal white
Light distribution
wide beam
Emergency lighting duration
1 h
Adjustability
not adjustable
Luminous flux in emergency mode
100%
UGR Value (4H8H)*
16.8
Protection class
II
IP-rating
IP65
Impact strength
IK08
Installation type
Surface mounting, wall mounting, single mounting
Energy efficiency class of the light source
C
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.

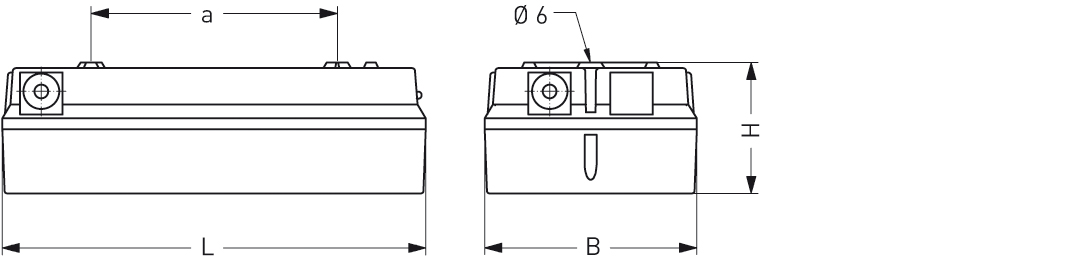

Dimensional Drawing
Length
310 mm
Width
155 mm
Height
96 mm
Mounting dimension a
180 mm
Max. weight
1,1 kg

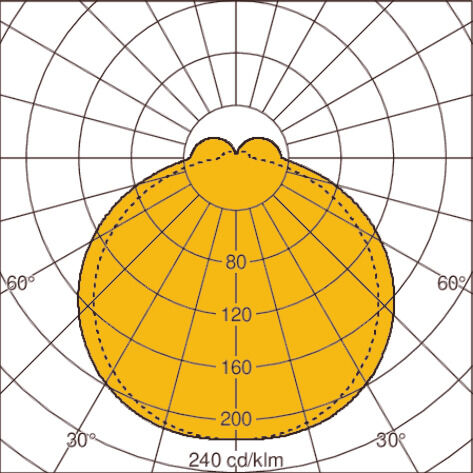

Light distribution curveLOR: 86 %
