6852420359-H1

TALON m2

9540 lm, 55 W, lamp cover, PC, white printed, medium beam

6852420359-H1
medium beam
  • led
  • IP65
  • ce
  • protection_class_II
  • brandschutz_d
  • ballwurfsicher_optional
  • IK10_PC

Aluminium luminaire for recessed and surface ceiling mounting with LED array, single or twin lamp. Useable in underground and suburban railway stations, pedestrian underpasses and tunnels, passages, swimming pools (see options), transport areas, under canopies and façades. Silver anodised aluminium profile housing. Hinged cover screen. Useable for indoor and outdoor areas according to protection rating IP 65. Protection class II. Clear cover screen made of PMMA or PC (fracture proof) with printed image, or white printed cover screen made of PMMA or PC (fracture proof), or PMMA Transopal® (impact strengthened) without printed image. Internal aluminium reflector, extreme wide beam. Version with integrated prism screen for rotation-symmetric glare reduction (circular deglare), wide beam. Built-in driver 230 V AC/DC supply voltage. Ready for connection via one rear-mounted cable entry. 2 kV transient filter. Single mounting. Optional continuous row version or on NORKA trunking system 285. Ceiling installation via rear 2/4-point fixing system.

Version
m2
Lamp
LED array
Number of lamps
2-lamp
Luminous flux lamp
9540 lm
LOR
61.9 %
Luminous flux luminaire
5905 lm
max. System power
55 W
Luminaire efficacy
107.36 lm/W
Colour temperature
White, 830/3000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 60,000 h at +35°C
Ambient temperature
-35°C to +35°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC
EL (Emergency Lighting)
false
Max. number of luminaires Circuit breaker B16
22
Max. Number of luminaires Circuit breaker C16
36
Through-wiring
without
Housing material
aluminium
Colour housing
Aluminium
Cover
lamp cover
Material of the cover
PC, white printed
Light distribution
medium beam
Adjustability
not adjustable
UGR Value (4H8H)*
26.8
Protection class
II
IP-rating
IP65
Impact strength
IK10
Installation type
trunking system, recessed mounted, Surface mounting, recessed mounting, ceiling mounting, single mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Energy efficiency class of the light source
E
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
570 mm ± 2 mm
Width
285 mm
Height
73 mm
Mounting dimension a
285 mm ± 1 mm
Dimension b
434 mm ± 2 mm
Max. weight
8,8 kg

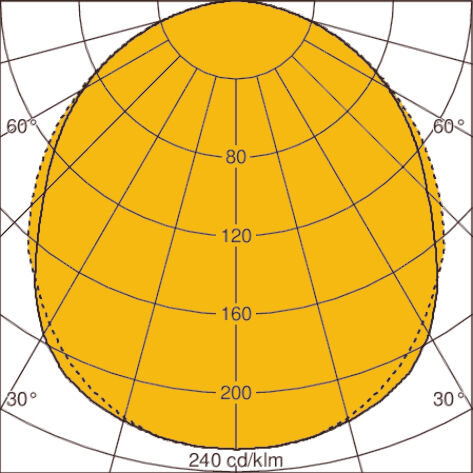

Light distribution curveLOR: 61 %
Options

Selected options will appear on the datasheet.

Version
  • article-number:100901
  • article-number:100502
  • article-number:On request
  • article-number:610003
  • article-number:685036
  • article-number:685037
  • article-number:201442
Accessories

Selected accessories will appear on the datasheet.

Version
  • article-number:685620
