ZUG LED HIGH OUTPUT m1500

13100 lm, 97 W, PMMA Transopal® (impact strengthened), medium beam

7786803421-13100lm
XARA ®optional
additional color temperatures
medium beam
  • led
  • EL_optional
  • IP65
  • IP66
  • IP67
  • IP68_20m
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • IK09_PMMA

Tubular luminaire with LED lamps. Useable in industrial applications and for areas with special safety requirements and special demands on the illumination level from great mounting heights. Useable up to +35 °C. Polymer luminaire tube (Ø 75 mm) with two quick-mounting pressure caps and protection against unauthorised opening. Useable in indoor and outdoor areas according to IP 65, IP 66 and IP 67. Resistant to pressurised water up to 20 m, compliant with IP 68 rating, 20 m. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP 69K. Luminaire tube made of PMMA Transopal® (impact strengthened) or PC Tropal® (fracture proof), homogeneous illumination. Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC. Two face side cable glands (M20) and 4 x 1.5 mm² through-wiring. L80 B10 > 100.000 h at +35 °C. 4 kV transient filter. 8 years warranty. Single or row mounting. Ceiling or wall fixing using two mounting clamps made of stainless steel/polymer black/clear with variable mounting distance.

Version
m1500
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
13100 lm
LOR
96.3 %
Luminous flux luminaire
12620 lm
max. System power
97 W
Luminaire efficacy
130 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 B10 > 100,000 h at +35°C
Ambient temperature
-40°C to +35°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC
EL (Emergency Lighting)
optional
DC level set at factory
15 %
DC level programmable
1 % to100 %
Transient protection
4 kV
Max. number of luminaires Circuit breaker B16
22
Max. Number of luminaires Circuit breaker C16
36
Through-wiring
4 x 1.5 mm²
Housing material
polymer
Colour housing
Other
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
medium beam
Adjustability
Swivelling
UGR Value (4H8H)*
27.2
Protection class
II
IP-rating
IP65, IP66, IP67, IP68 20m, IP69K
Impact strength
IK09
ENEC
Yes
VDE
Yes
Manufacturer warranty
8 years
Installation type
wire suspension, cable suspension, ceiling mounting, wall mounting, single mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
LED tray replaceable by professional
Energy efficiency class of the light source
E
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1712 mm ± 2 mm
Width
89 mm
Height
97 mm
Mounting dimension a
1610 mm ± 25 mm
Max. weight
4,9 kg

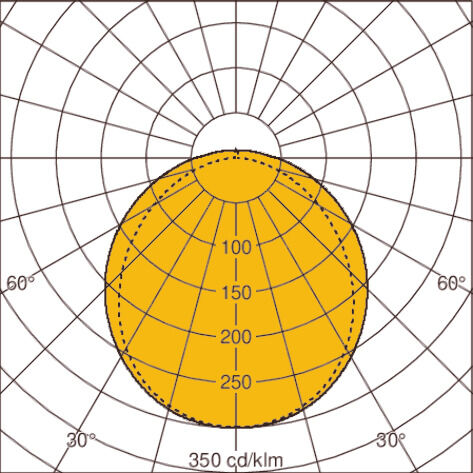

Light distribution curveLOR: 96 %
